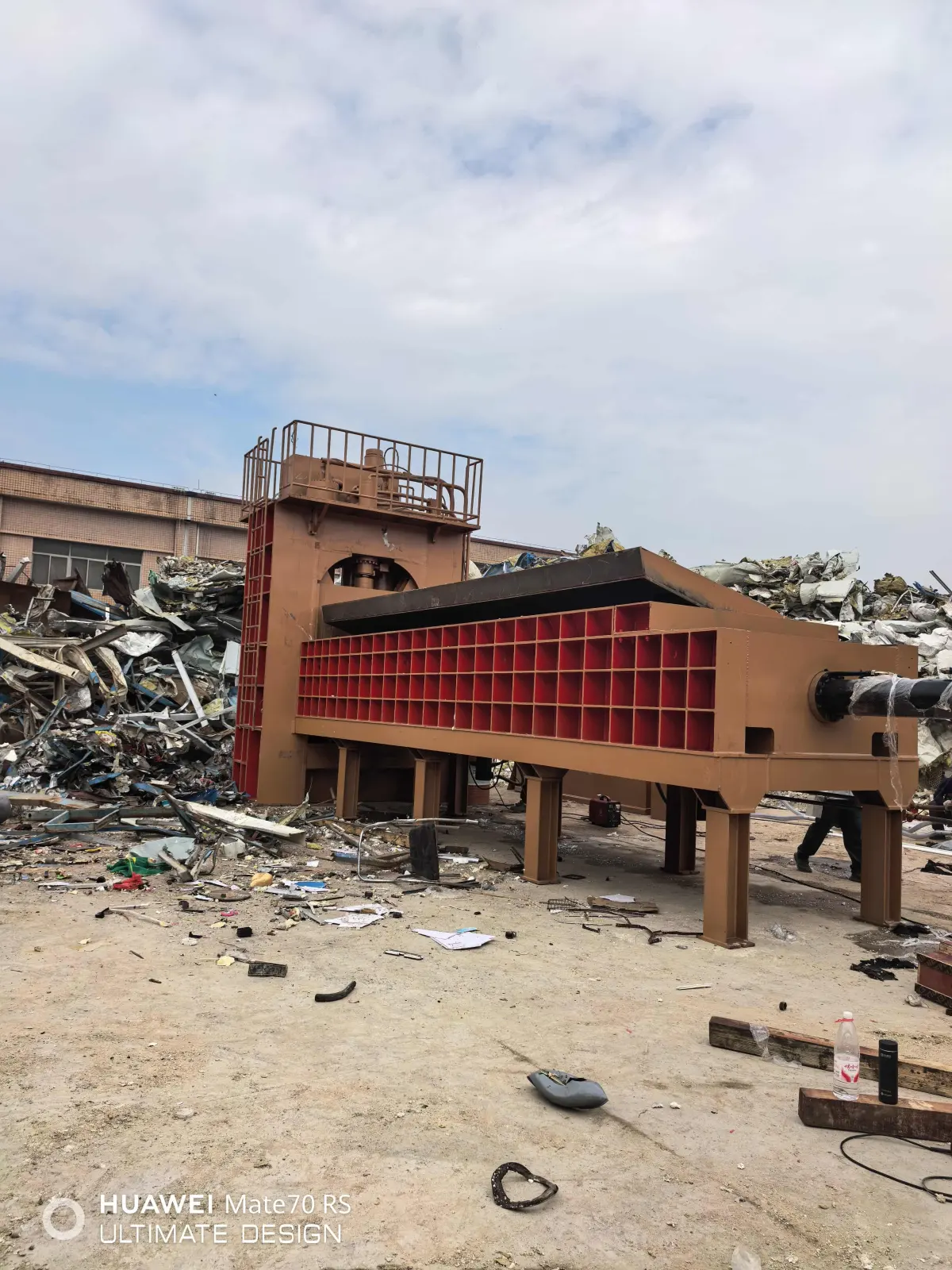

Fast Blade Change Hydraulic Gantry Shear | High-Speed Scrap Steel Cutting

The Fast Blade Change Hydraulic Gantry Shear is designed for efficient cutting of scrap steel, rebar, structural steel, automobile frames, ship plates and other heavy scrap metal. With 3–5 cuts per minute and a fast blade change system, blade replacement can be completed in as little as 2 hours, reducing downtime and improving scrap processing efficiency.

Product Features

Fast Blade Change：Fast blade replacement, with blade changes completed in as little as 2 hours, reducing machine downtime.
High-Speed Cutting：Cutting frequency of approximately 3–5 cuts per minute for efficient high-volume scrap processing.
Intelligent Control：Supports manual operation and remote control for flexible and convenient operation.
Heavy-Duty & Durable：Built with a high-strength wear-resistant structure for heavy scrap and continuous high-load cutting operations.

Product Details

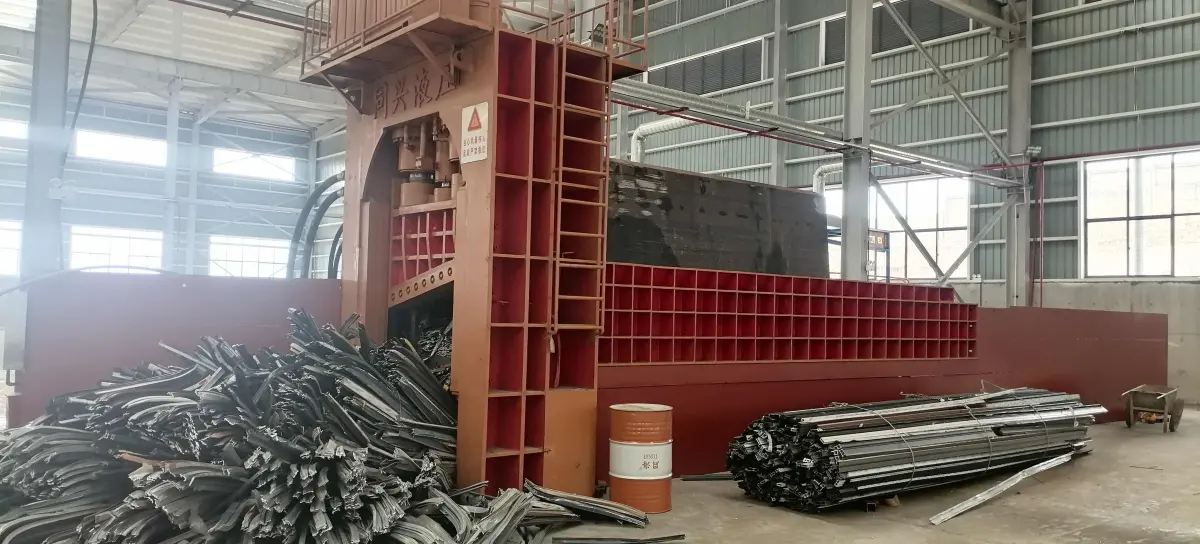

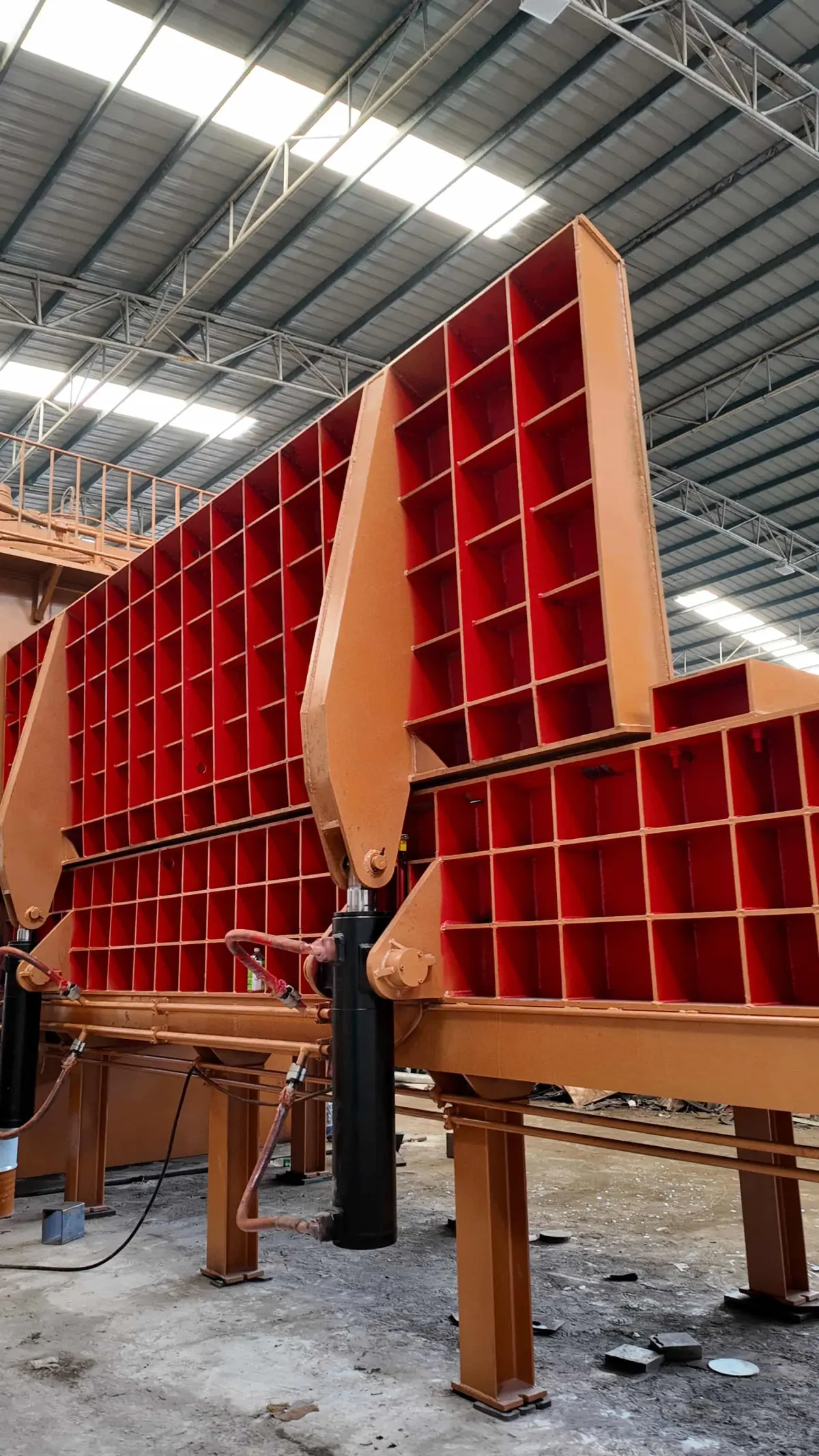

500T-1250T Fast Blade Change Hydraulic Gantry Shear

The Fast Blade Change Hydraulic Gantry Shear is a heavy-duty hydraulic shearing machine designed for the efficient cutting of large, heavy and irregular scrap metal.

The machine is suitable for processing scrap steel plates, rebar, structural steel, automobile frames, ship plates, industrial scrap, household scrap and other large metal waste. With powerful hydraulic shearing force, it cuts large scrap metal into manageable sizes for subsequent storage, transportation, sorting and recycling.

The machine features a heavy-duty structure, high-efficiency hydraulic system and fast blade change system, making it suitable for high-volume continuous operations in scrap recycling, steel production, end-of-life vehicle dismantling, ship dismantling and recycling facilities.

The fast blade change system simplifies blade removal and installation. Blade replacement can be completed in as little as 2 hours, reducing maintenance downtime and improving overall production efficiency.

Main Applications

The Hydraulic Gantry Shear is mainly used for size reduction, shearing and pre-processing of large scrap metal. It cuts long, oversized and irregular scrap into suitable sizes for transportation and further processing, helping improve overall scrap recycling efficiency.

Main applications include:

Scrap Steel Recycling and Processing
Scrap Pre-Processing for Steel Mills
End-of-Life Vehicle Dismantling
Ship Dismantling
Industrial Scrap Processing
Construction and Demolition Scrap Processing
Recycling and Resource Recovery Centers
Large Metal Scrap Processing

Key Advantages

01｜Fast Blade Change

The machine features a dedicated fast blade change system that simplifies blade removal, installation and maintenance. Blade replacement can be completed in as little as 2 hours, effectively reducing machine downtime.

02｜High-Speed Cutting

The high-efficiency hydraulic system provides fast cutting performance with a cutting frequency of approximately 3–5 cuts per minute, making the machine suitable for continuous high-volume scrap processing.

03｜Intelligent Control

The machine supports manual operation and remote control, providing flexible operation and convenient equipment management and maintenance.

04｜Heavy-Duty Wear-Resistant Structure

Built with high-strength wear-resistant steel, the machine offers excellent impact resistance and wear resistance for continuous cutting of large and heavy scrap metal.

05｜High-Efficiency Hydraulic System

The optimized hydraulic system provides stable and powerful shearing force while improving operating efficiency, meeting the requirements of heavy-duty scrap metal processing.

Applicable Materials

The Hydraulic Gantry Shear can process a wide range of large and heavy scrap metals, including:

Scrap steel plates
Scrap rebar
Structural steel and steel sections
Automobile frames and end-of-life vehicle scrap
Ship plates
Industrial scrap
Construction and demolition scrap
Household scrap
Large and heavy scrap metal

Product Series

Tongxing Hydraulic offers multiple tonnage options of Fast Blade Change Hydraulic Gantry Shears. The appropriate model can be selected according to the customer's material type, material size, processing capacity and site conditions.

Standard Models: 500T / 630T / 800T / 1000T / 1250T

Technical Specifications

Model	Maximum Shear Force (T)	Press Box Size (mm)	Blade Length (mm)	Shearing Frequency (times/min)	Main Motor Power (kW)
500T	500	6500 × 1400 × 600	750	3–5	2 × 37
630T	630	6800 × 1600 × 800	850	3–5	2 × 45
800T	800	6800 × 2000 × 800	950	3–5	3 × 45
1000T	1000	6800 × 2000 × 1000	1050	3–5	4 × 45
1250T	1250	6800 × 2000 × 1000	1050	3–5	4 × 55

Note: Machine specifications can be adjusted according to the customer's material type, processing capacity and site conditions.

Customization Services

Guangdong Tongxing Hydraulic can provide customized hydraulic gantry shear solutions according to the customer's material type, material size, shearing requirements, target processing capacity and installation conditions.

Customization options include:

Press box size
Blade length and specifications
Maximum shearing force
Hydraulic system configuration
Fast blade change system
Cooling system
Manual / remote control system
Feeding and pressing configuration
Automatic control system
Motor and power configuration
Overall machine structure and installation solution

From equipment selection and parameter configuration to installation and commissioning, Tongxing Hydraulic provides technical support based on the customer's actual production requirements.

Training & Technical Support

Tongxing Hydraulic provides customers with technical documentation covering equipment operation and maintenance to help operators correctly use and maintain the machine.

Technical documentation includes:

Equipment operating instructions
Routine maintenance requirements
Safety operating procedures
Hydraulic system maintenance
Blade replacement and maintenance
Common troubleshooting

According to project requirements, we can also provide equipment installation, commissioning, operator training and after-sales technical support to help customers operate the equipment correctly and maintain stable production.

Packaging & Transportation

With extensive experience in exporting hydraulic equipment, Tongxing Hydraulic provides professional equipment packaging and transportation services according to machine structure, dimensions and international shipping requirements.

The equipment is properly protected according to actual transportation conditions to reduce the risk of damage during loading, handling and long-distance transportation.

We can also assist customers with container loading, transportation and related export logistics, providing convenient equipment delivery services for overseas projects.

Contact Us

If you are looking for a heavy-duty hydraulic gantry shear for processing scrap steel, stainless steel, scrap copper, scrap aluminum and other large scrap metals, contact Guangdong Tongxing Hydraulic.

We can recommend the appropriate equipment model according to your material type, processing capacity, site conditions and production requirements, and provide technical specifications, customized configurations and complete metal recycling solutions.

WhatsApp: +61 489 152 309

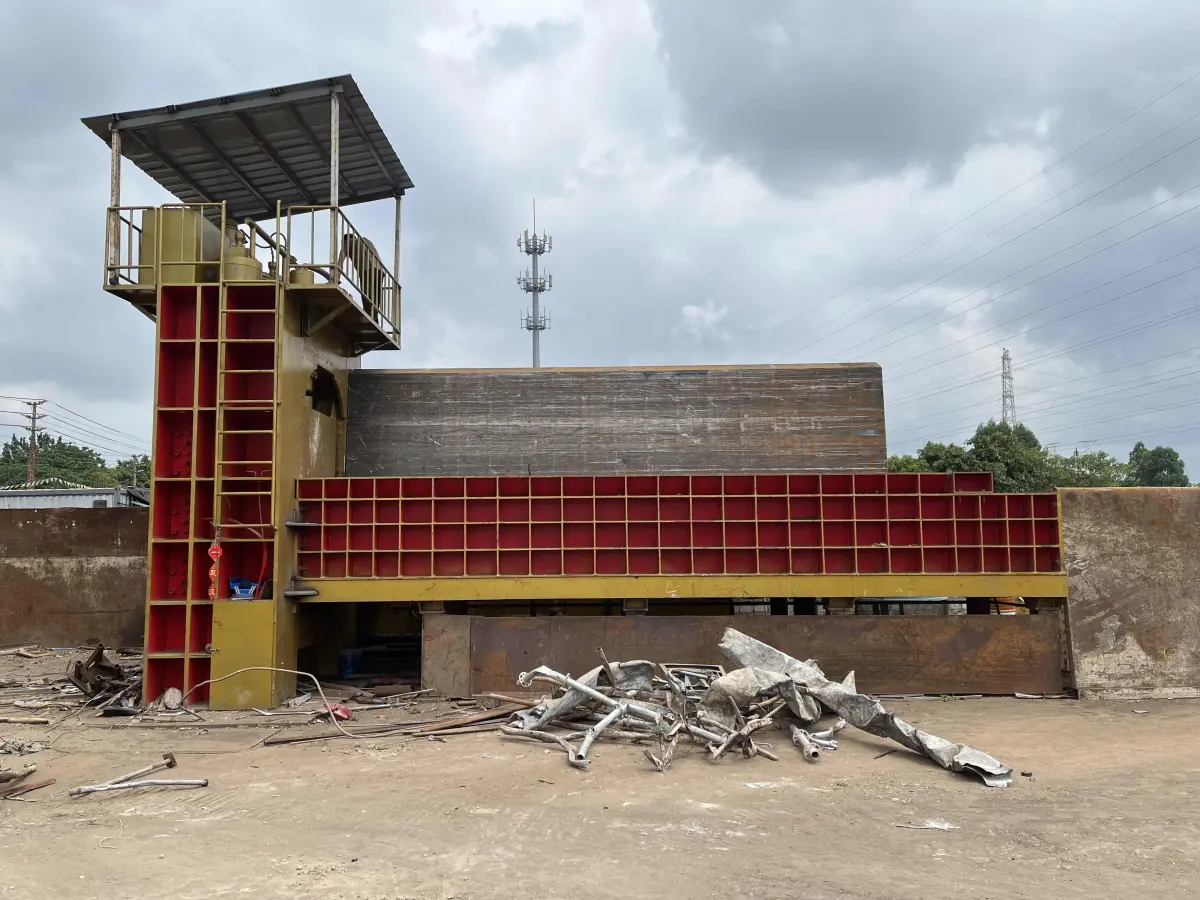

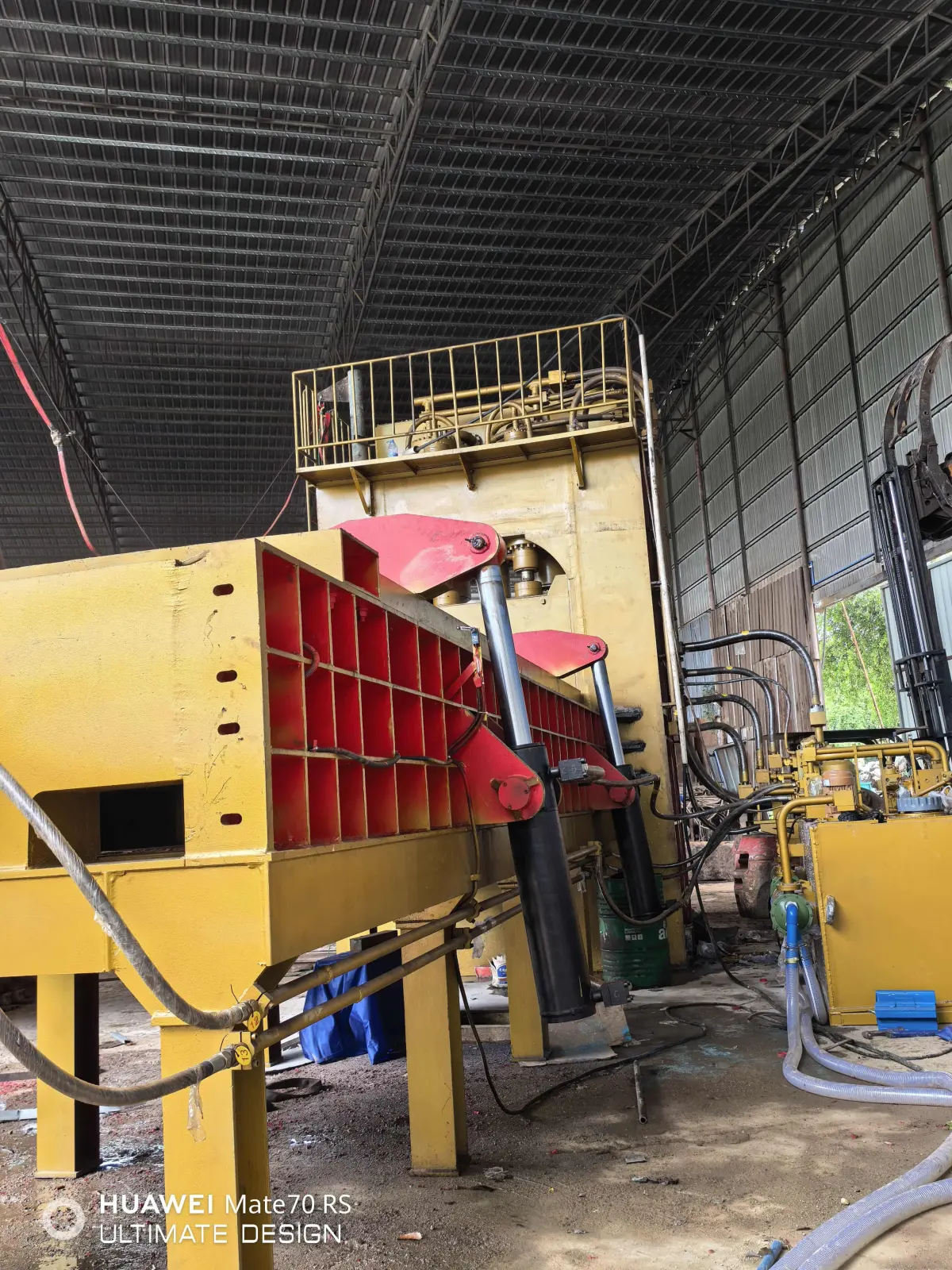

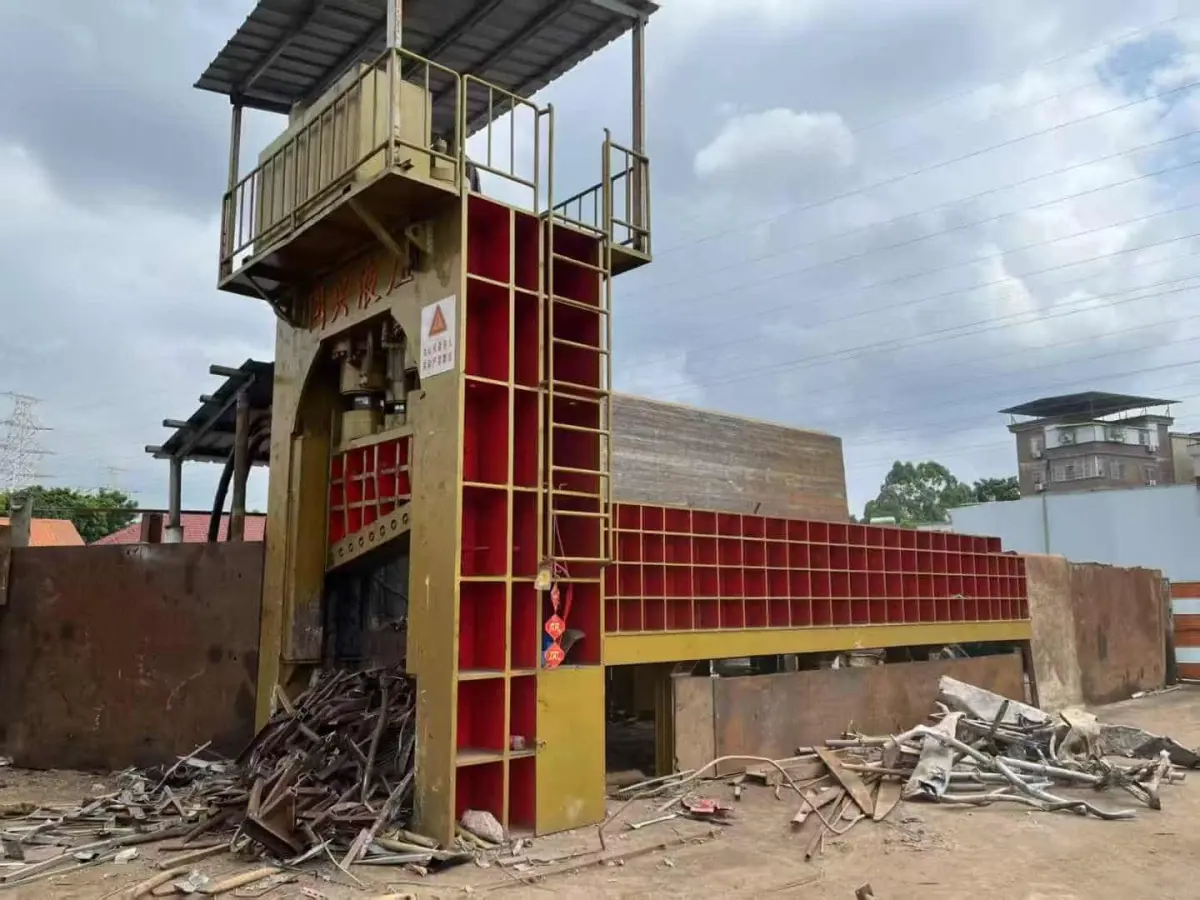

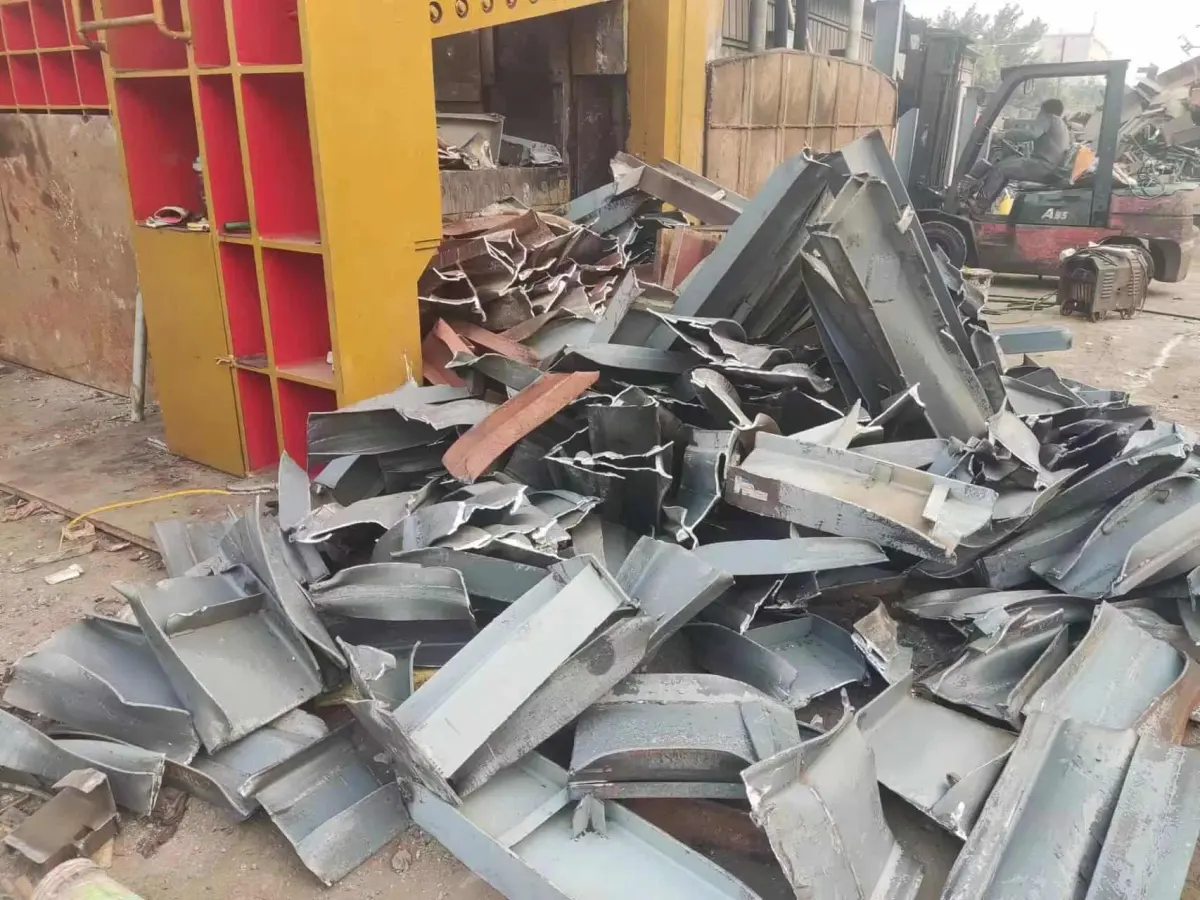

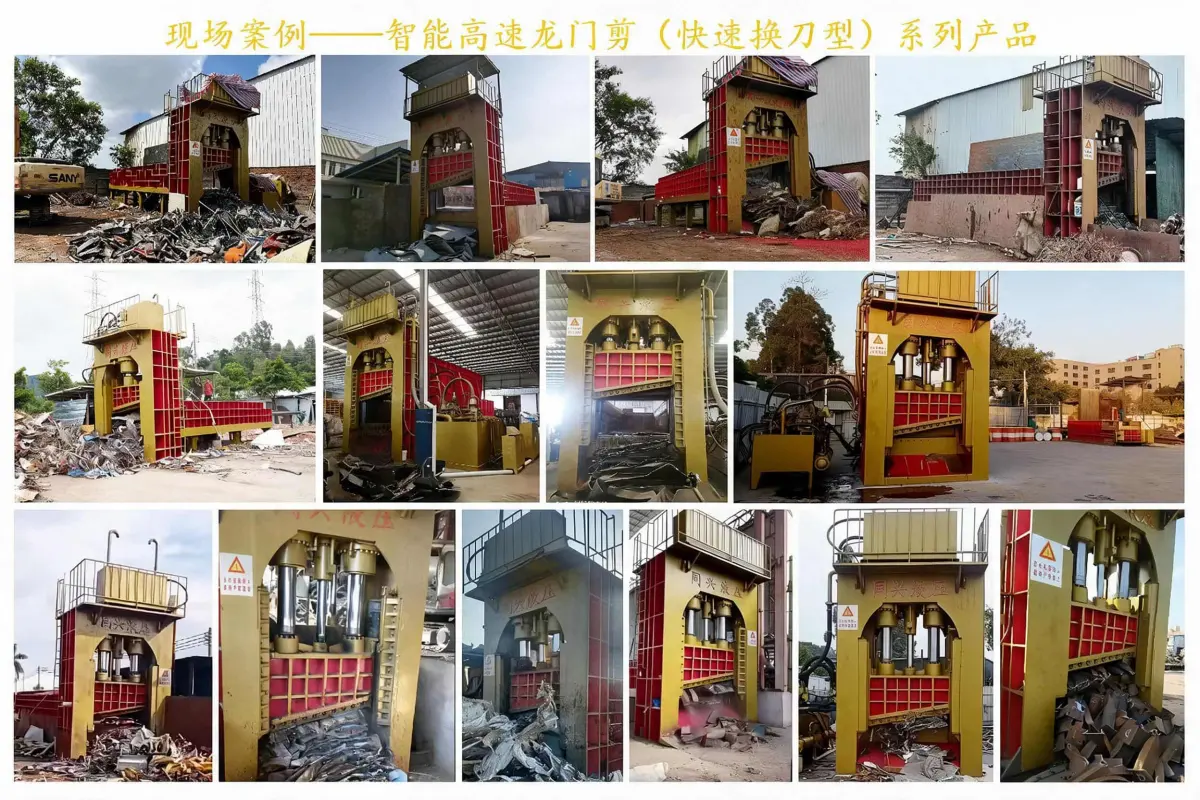

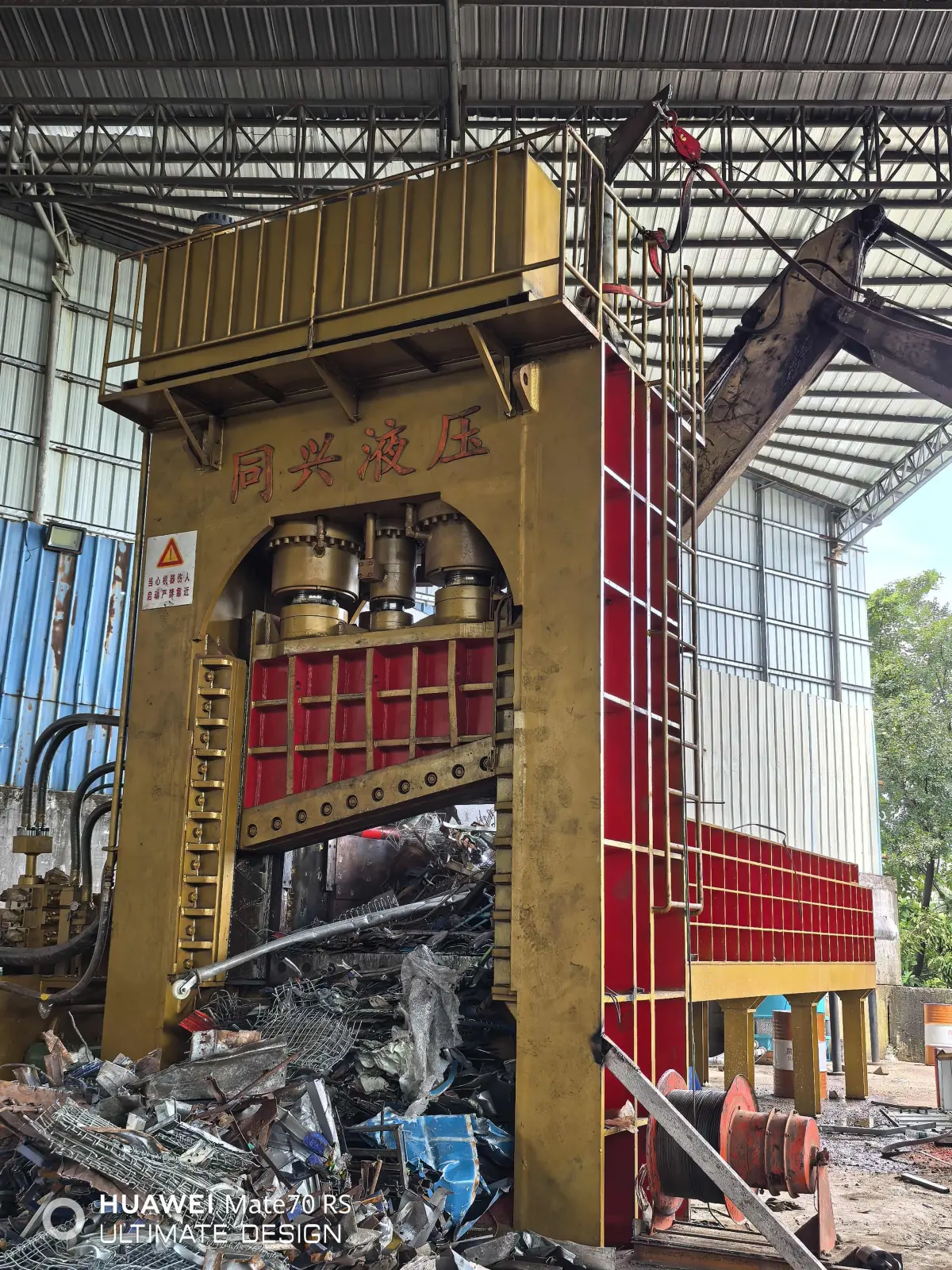

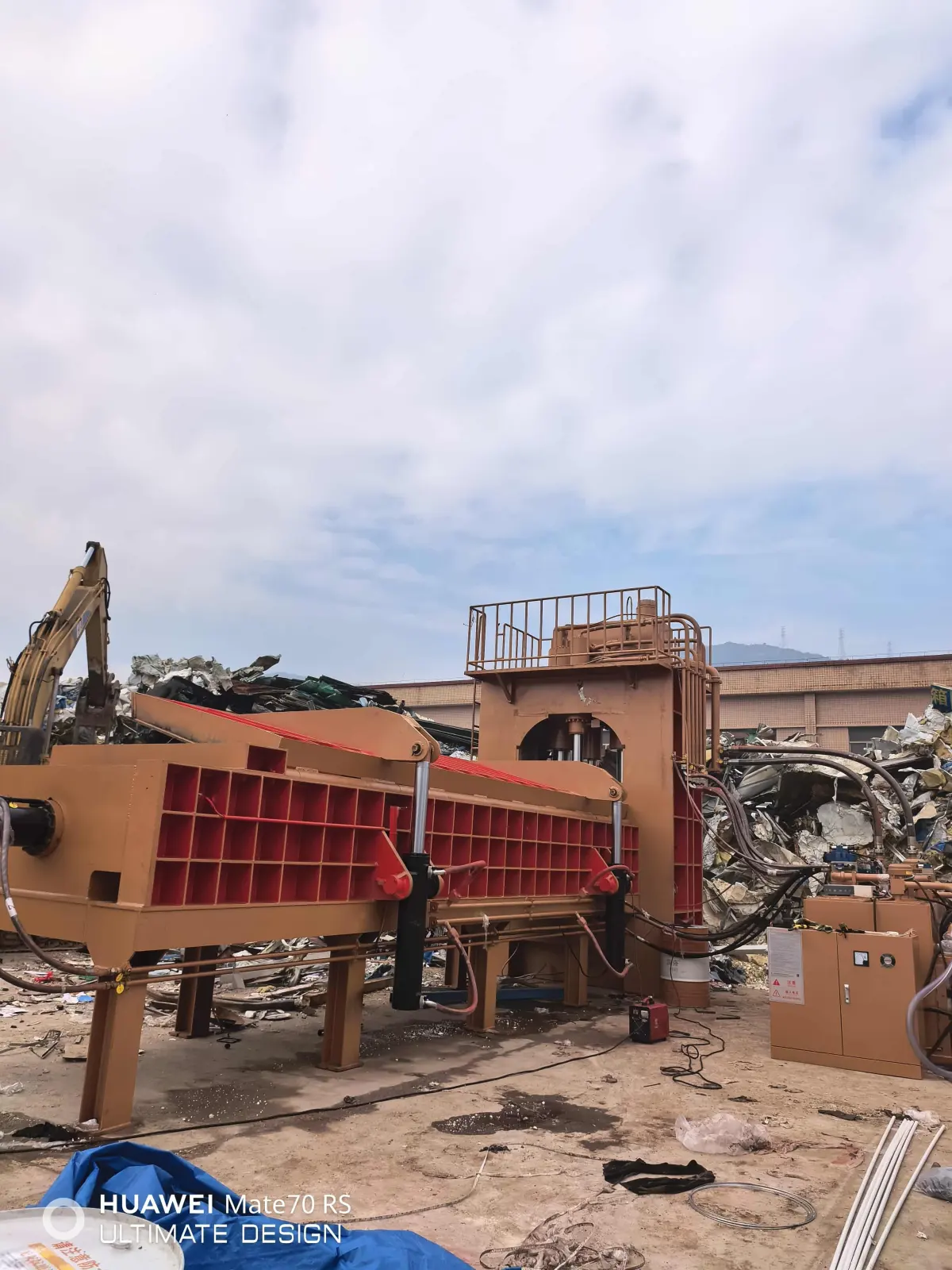

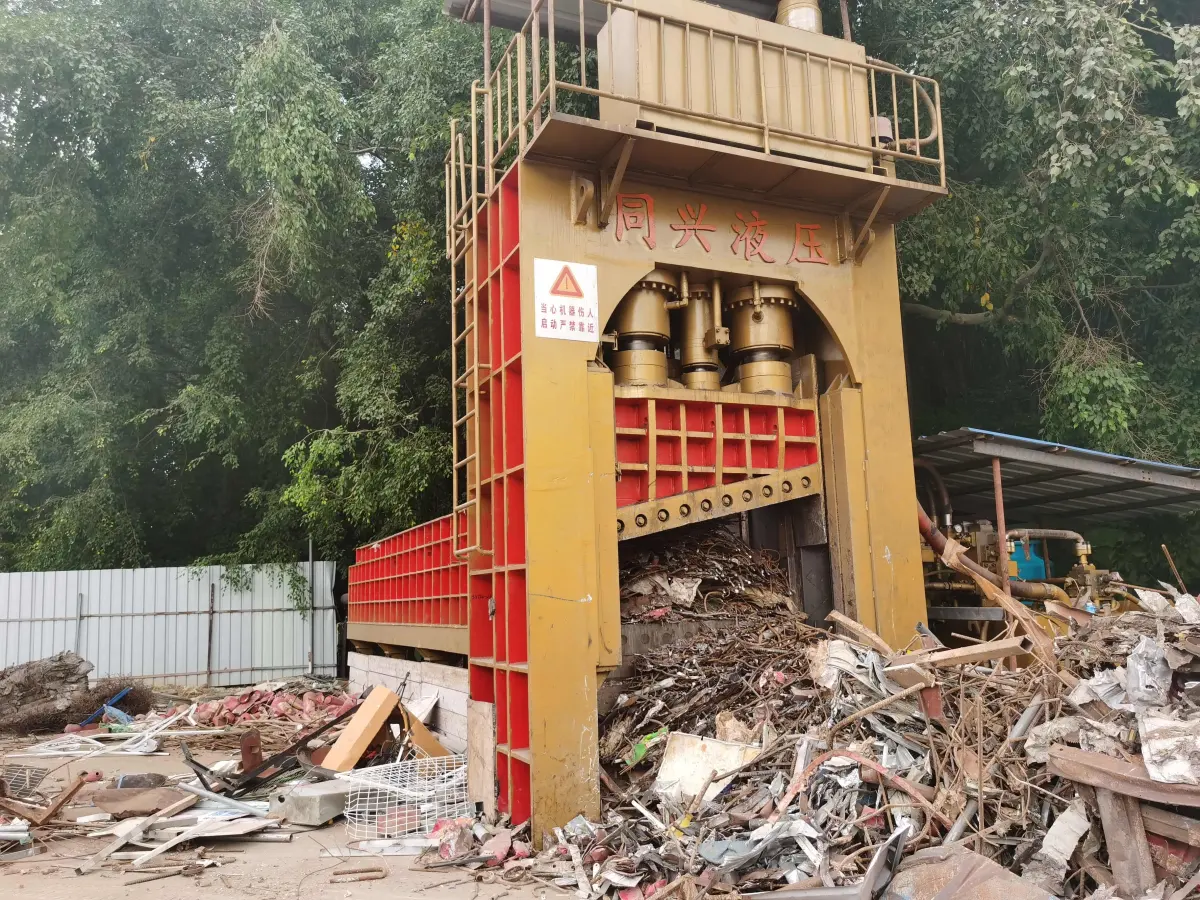

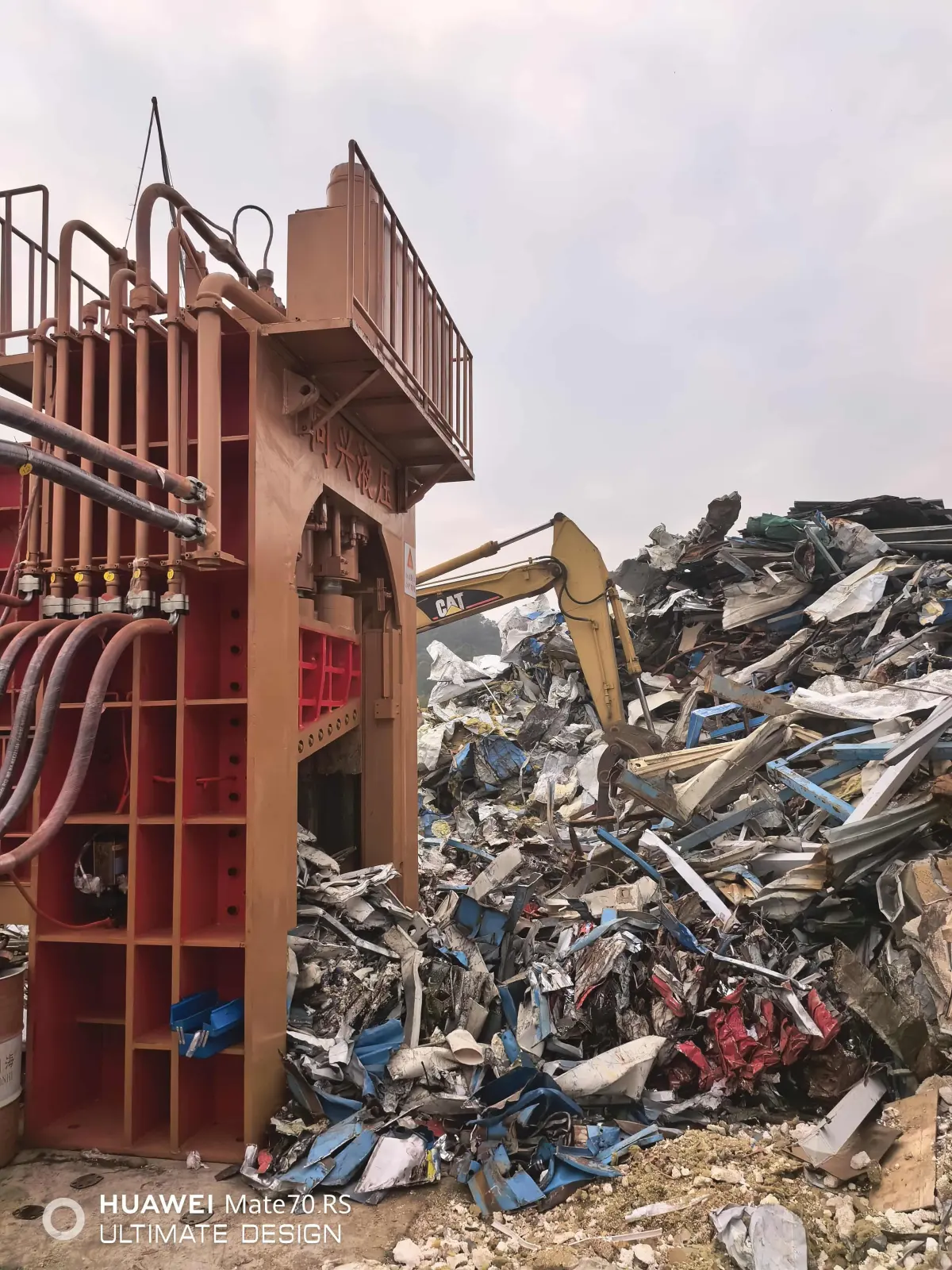

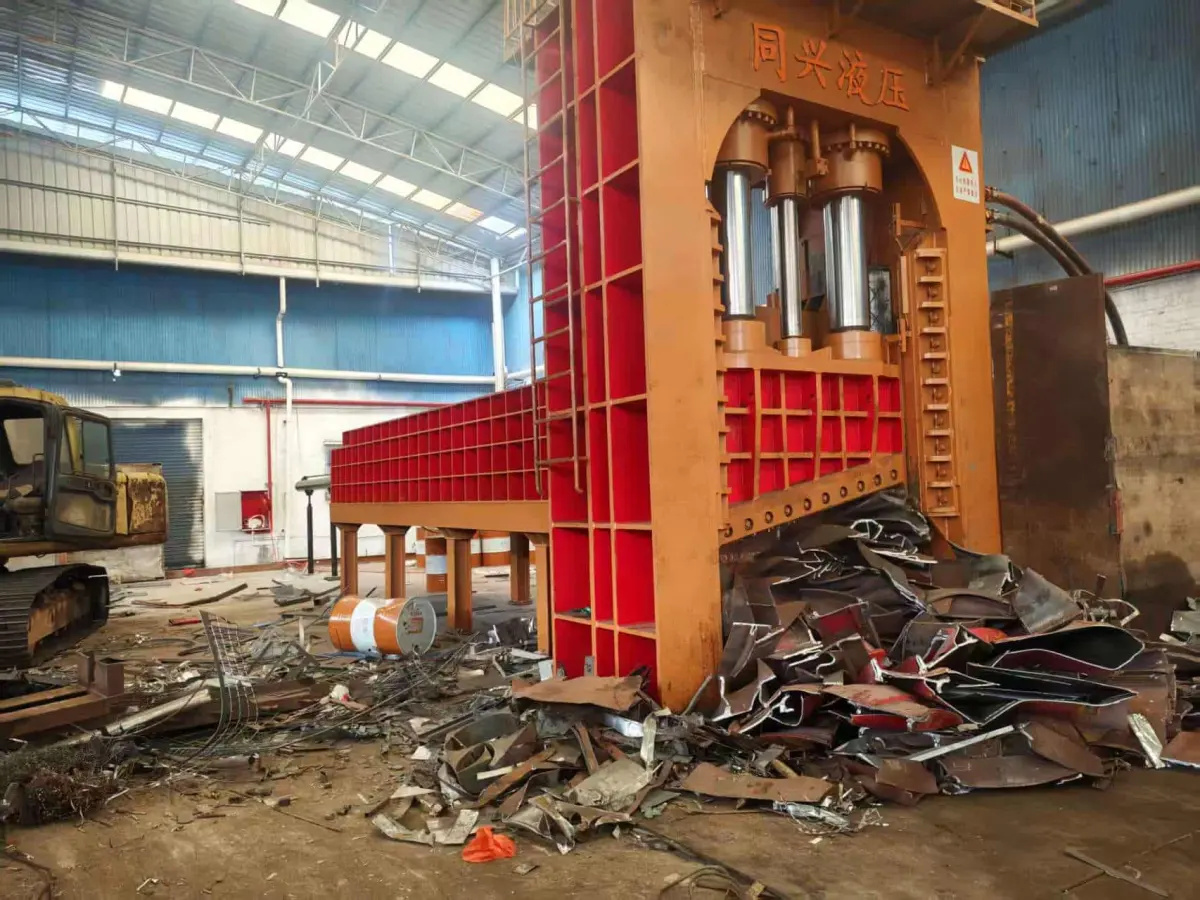

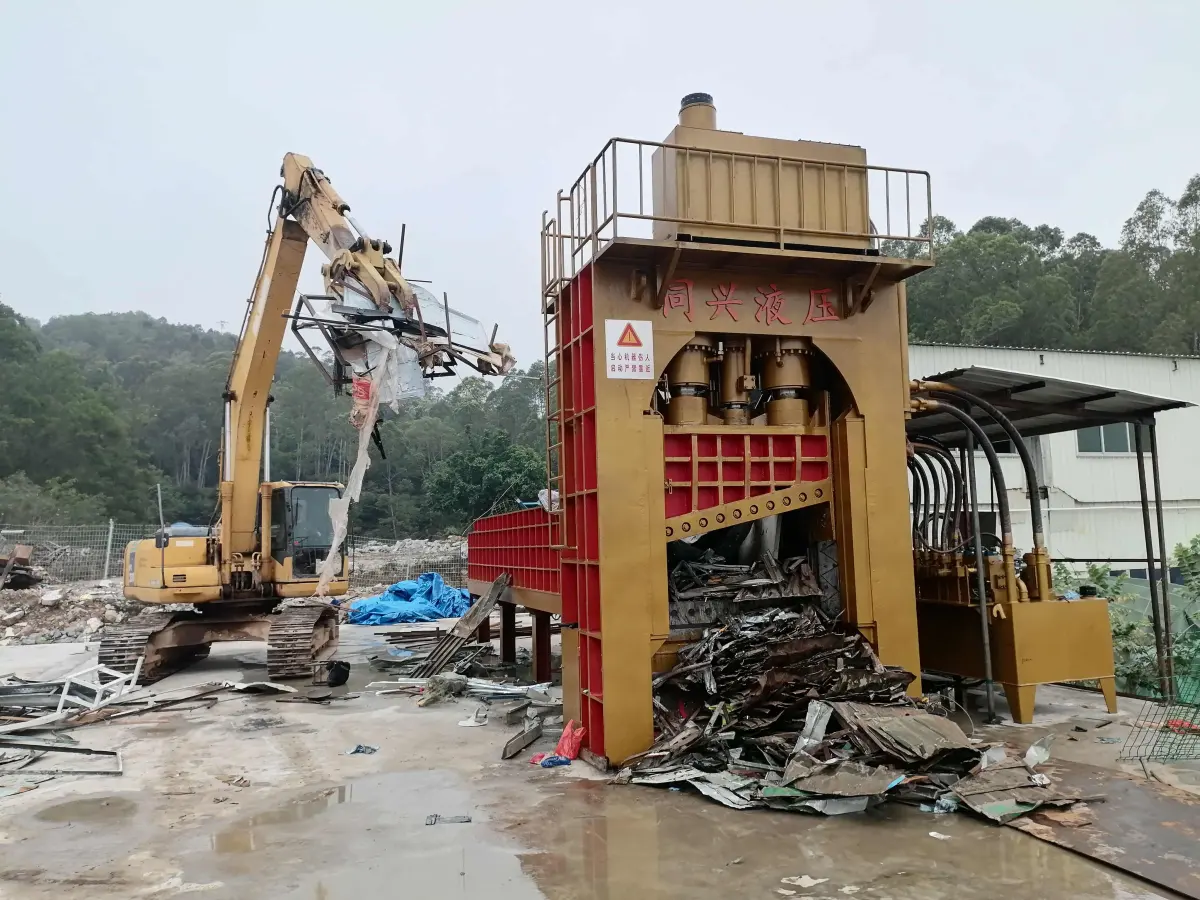

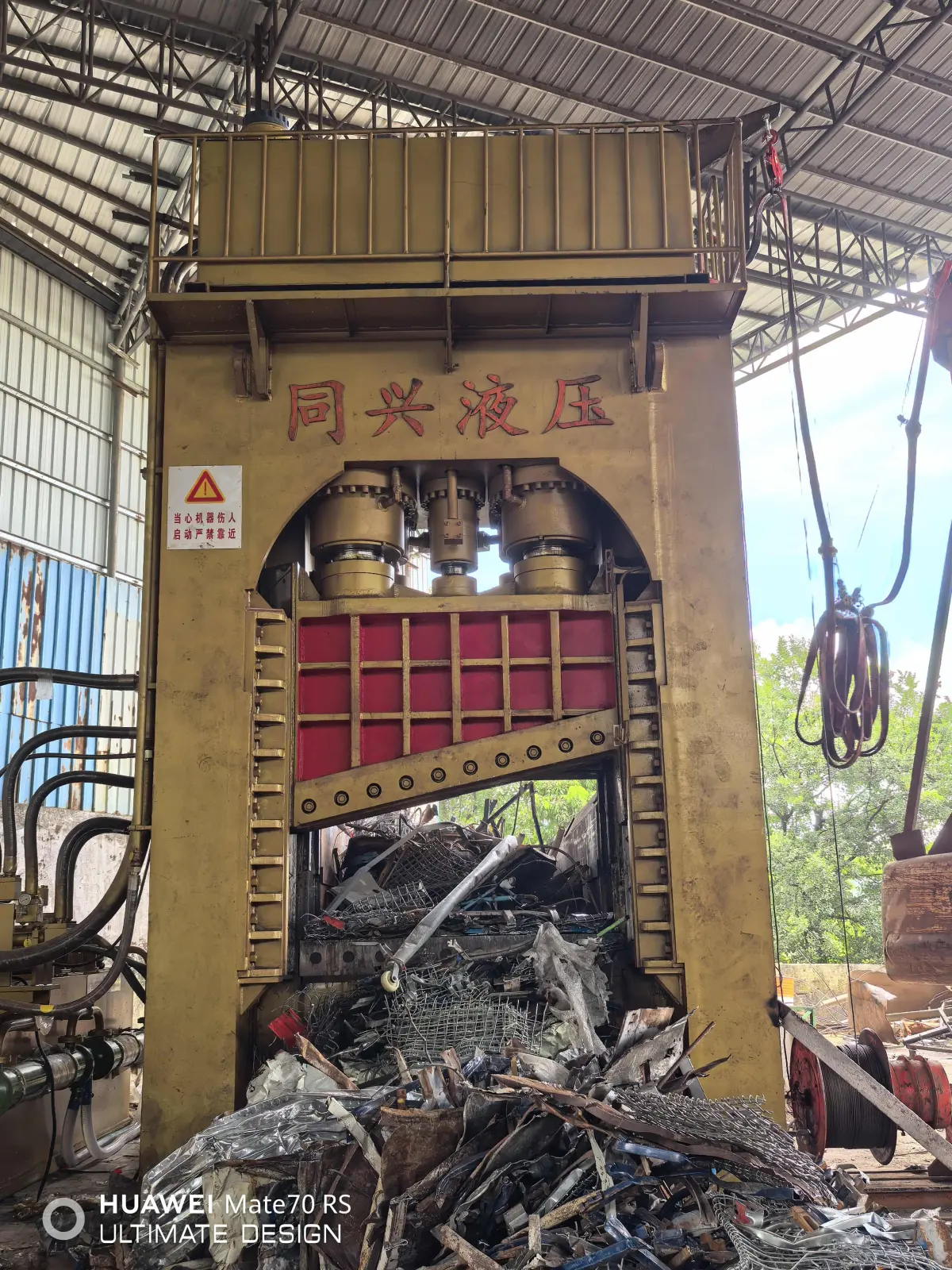

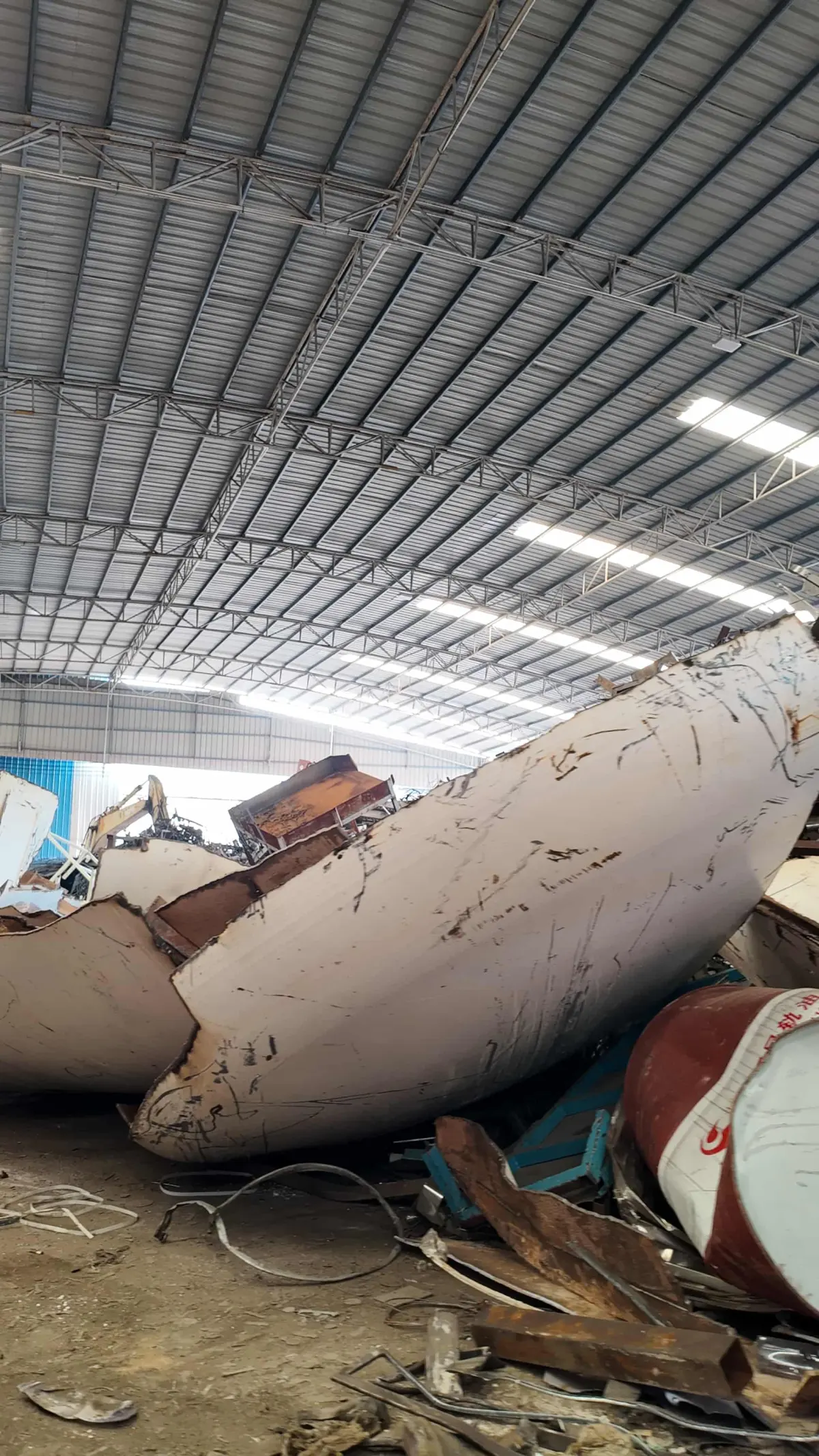

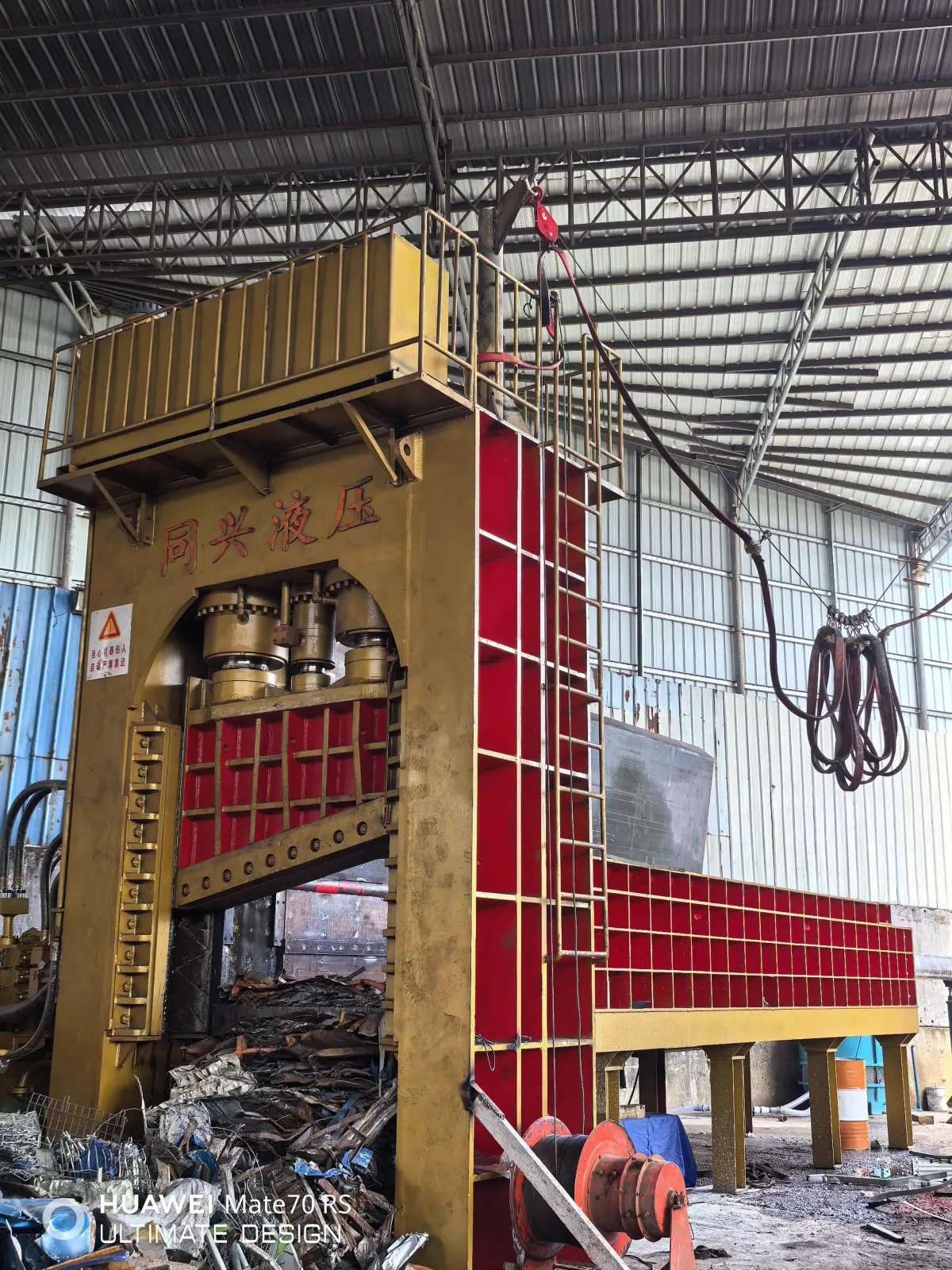

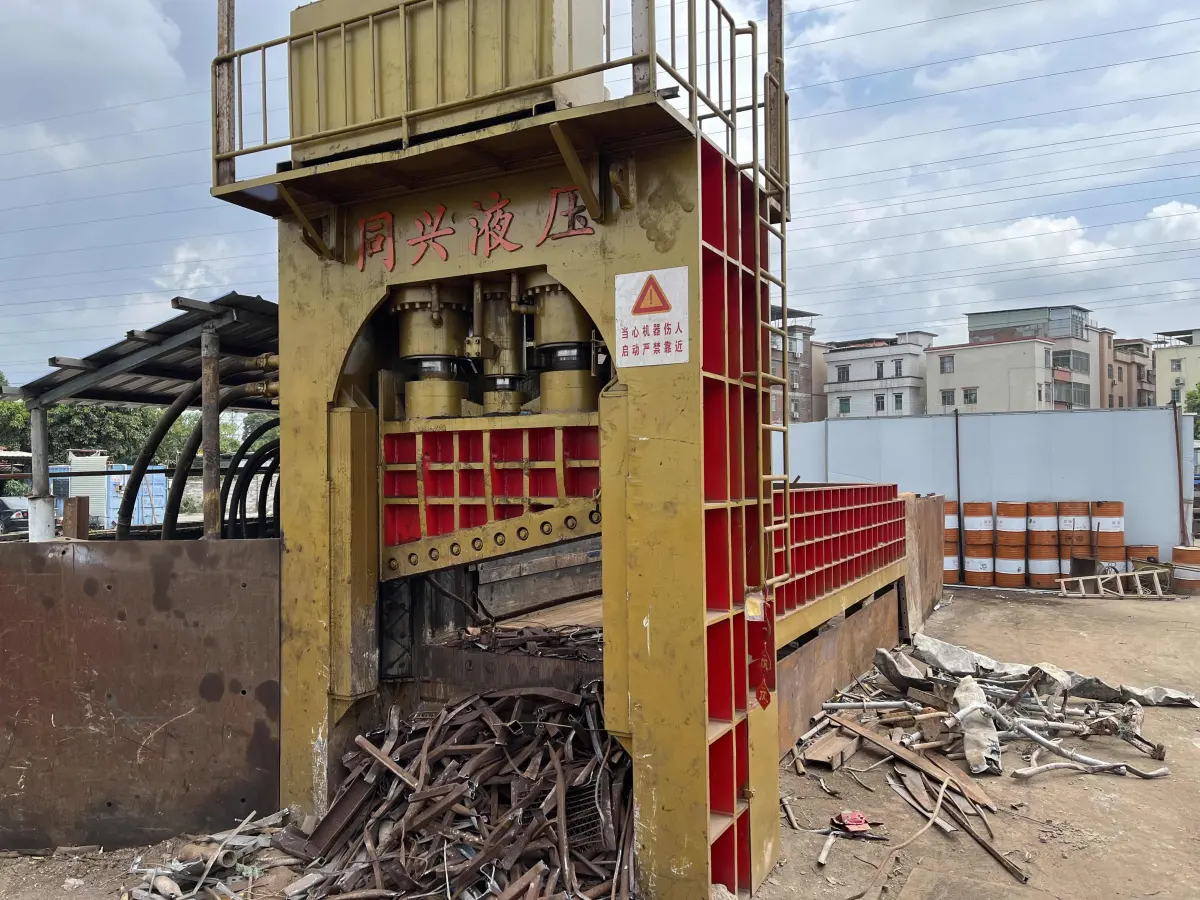

Project Showcase

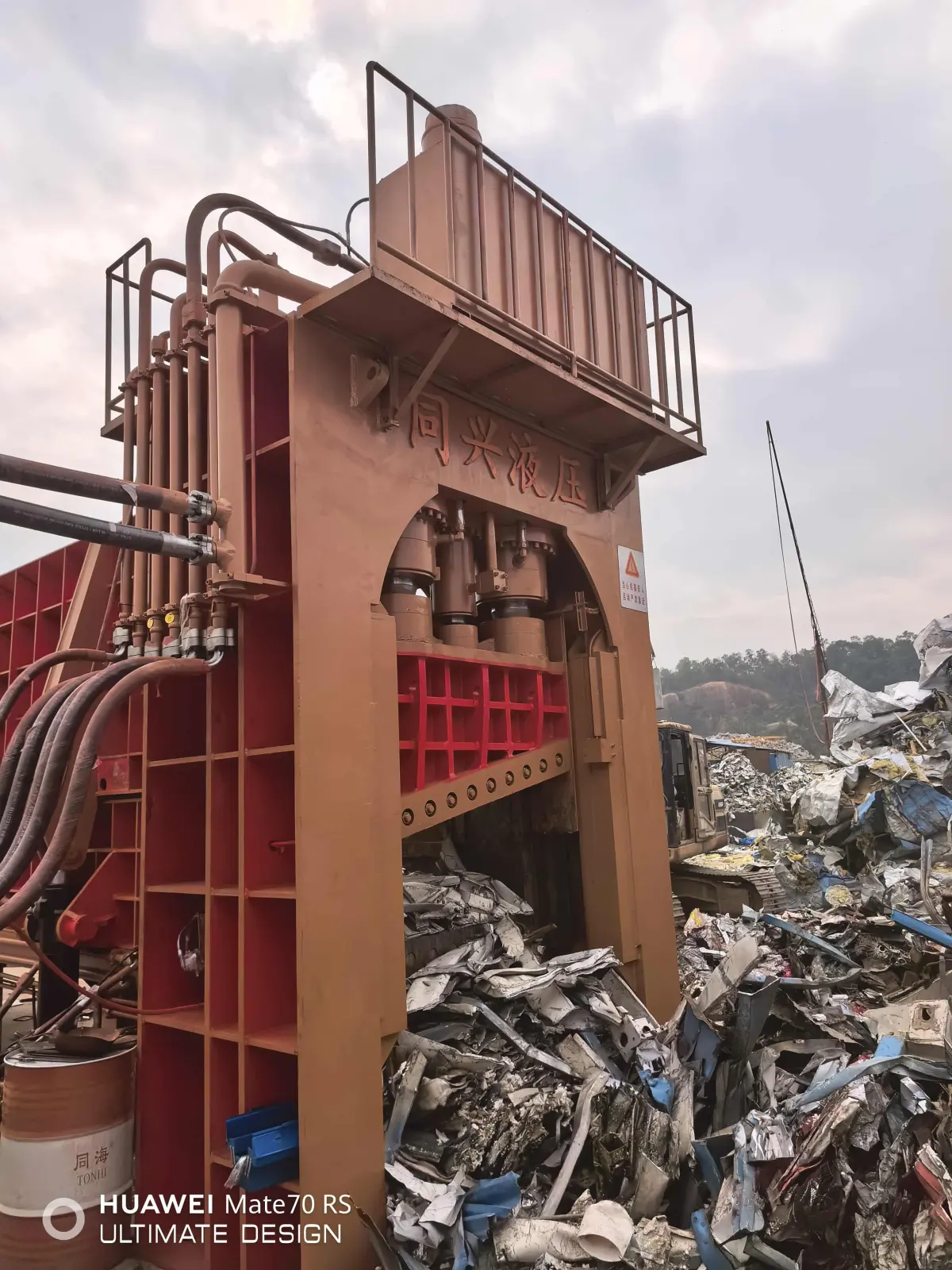

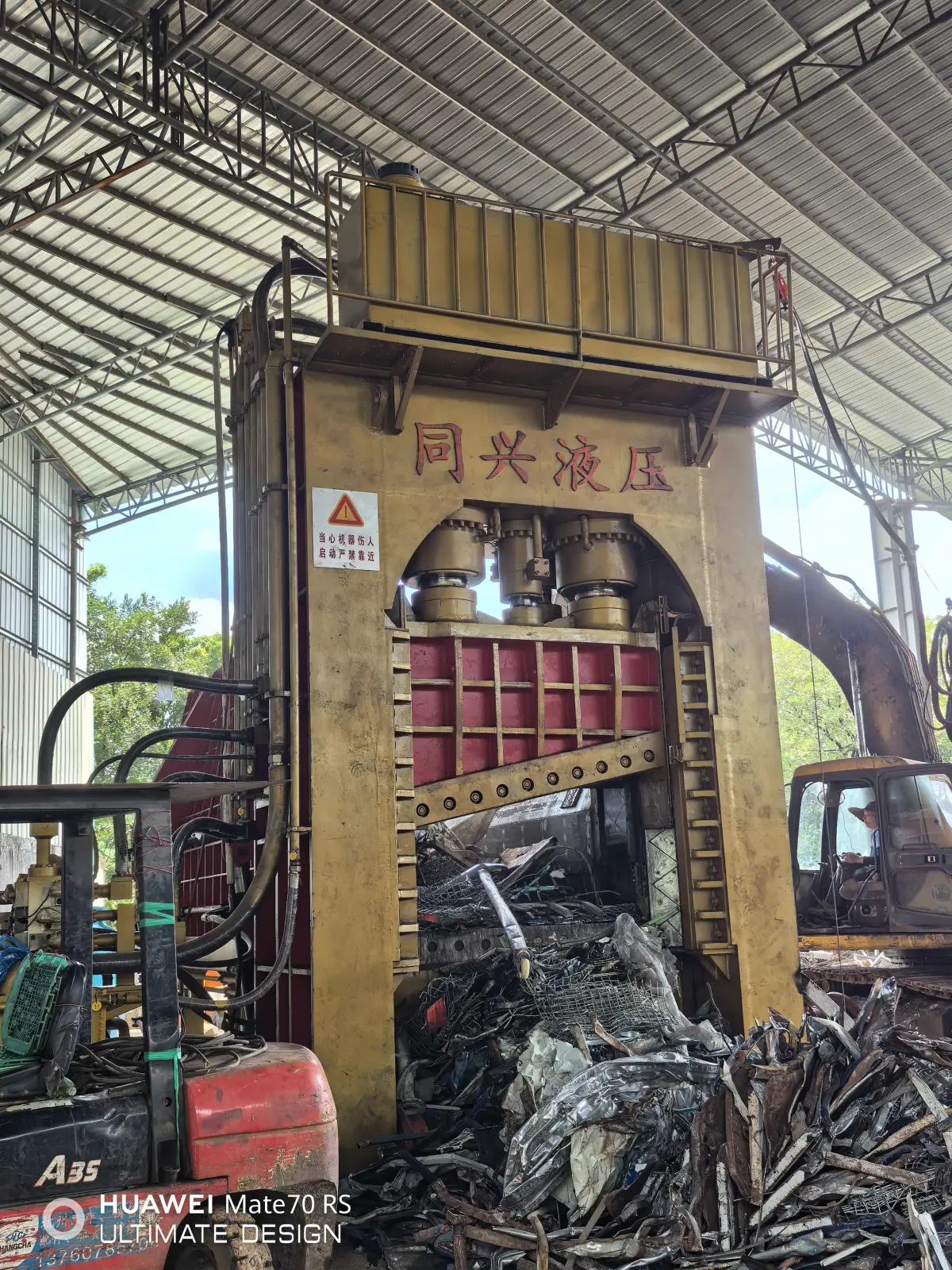

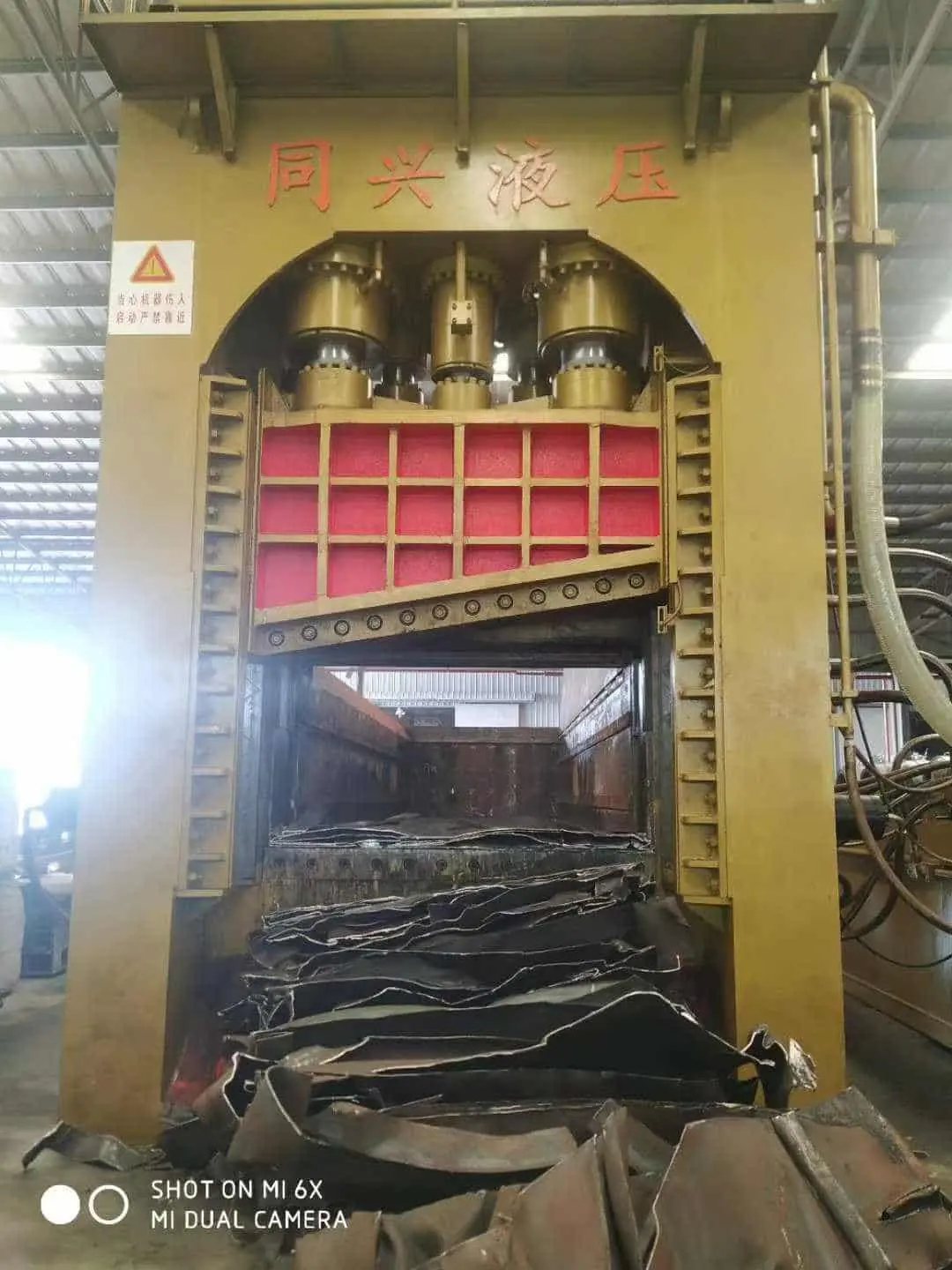

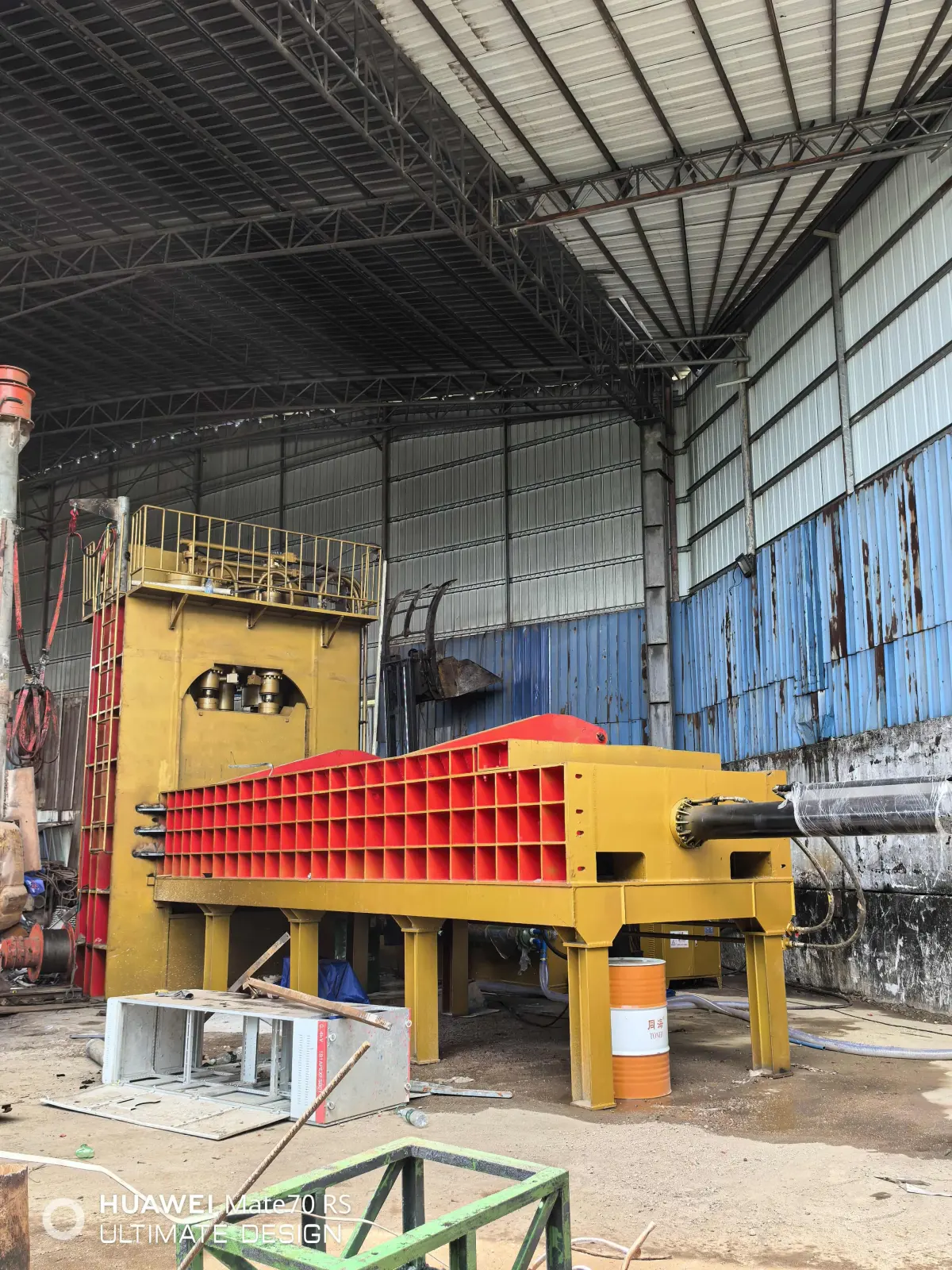

Customer on-site applications of our equipment
