670T–3000T Automatic Horizontal Metal Briquetting Production Line

Heavy-duty hydraulic briquetting solution for copper chips, aluminum chips, steel chips and other metal scrap. The complete line integrates a feeding conveyor, automatic weighing system, feeding hopper and horizontal hydraulic briquetting press to achieve accurate feeding, two-stage compression and automatic briquette discharge. Designed for large-scale metal recycling, foundries and metal processing plants.

Product Features

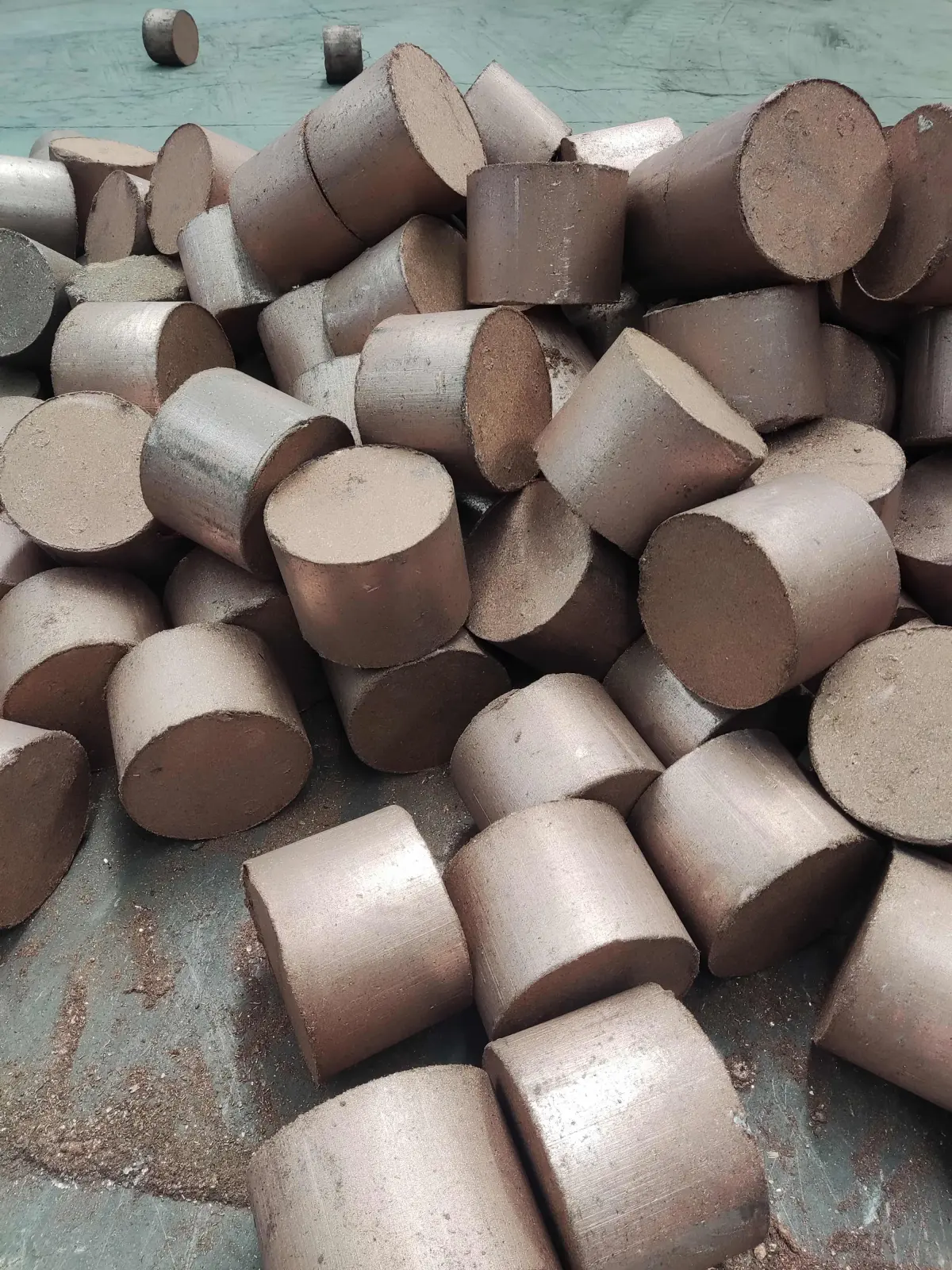

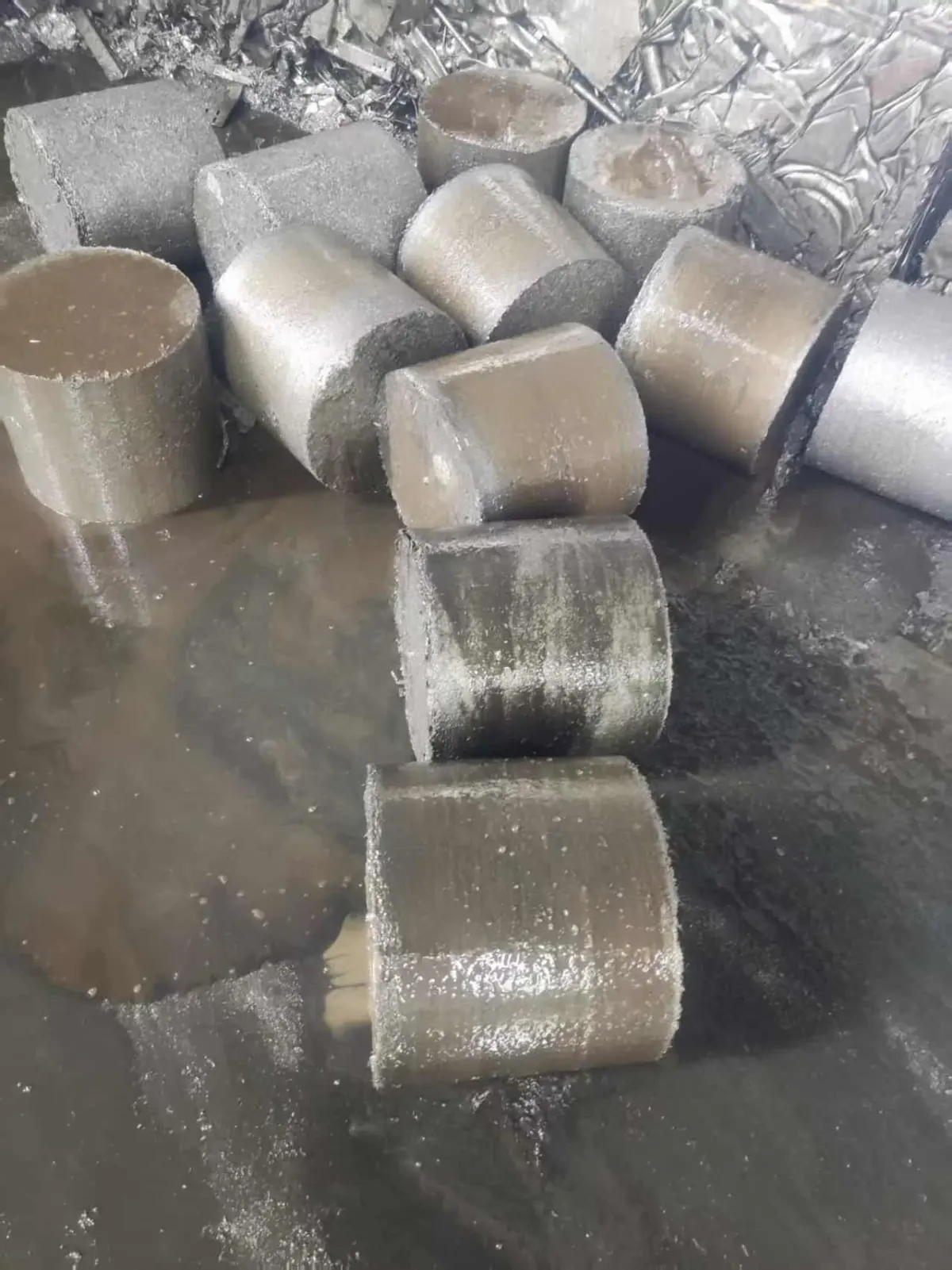

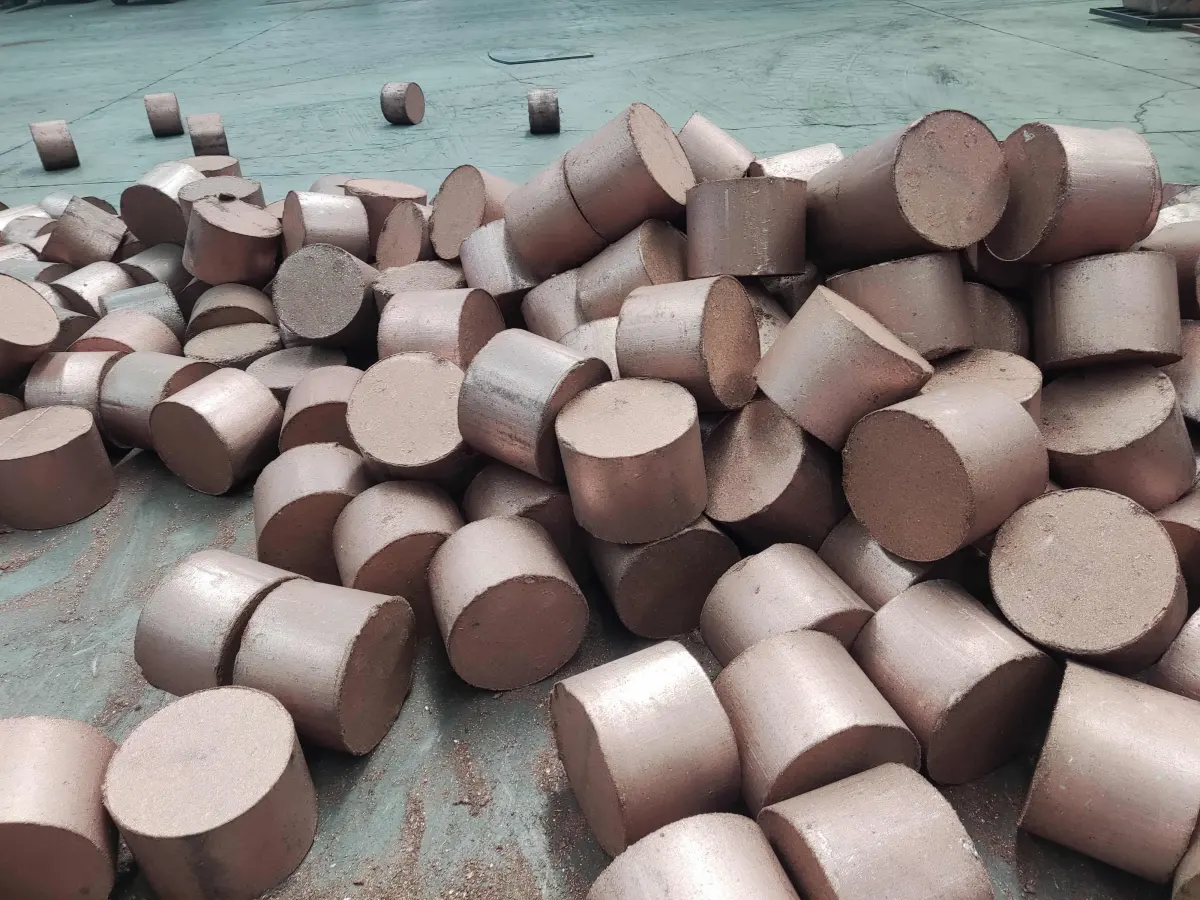

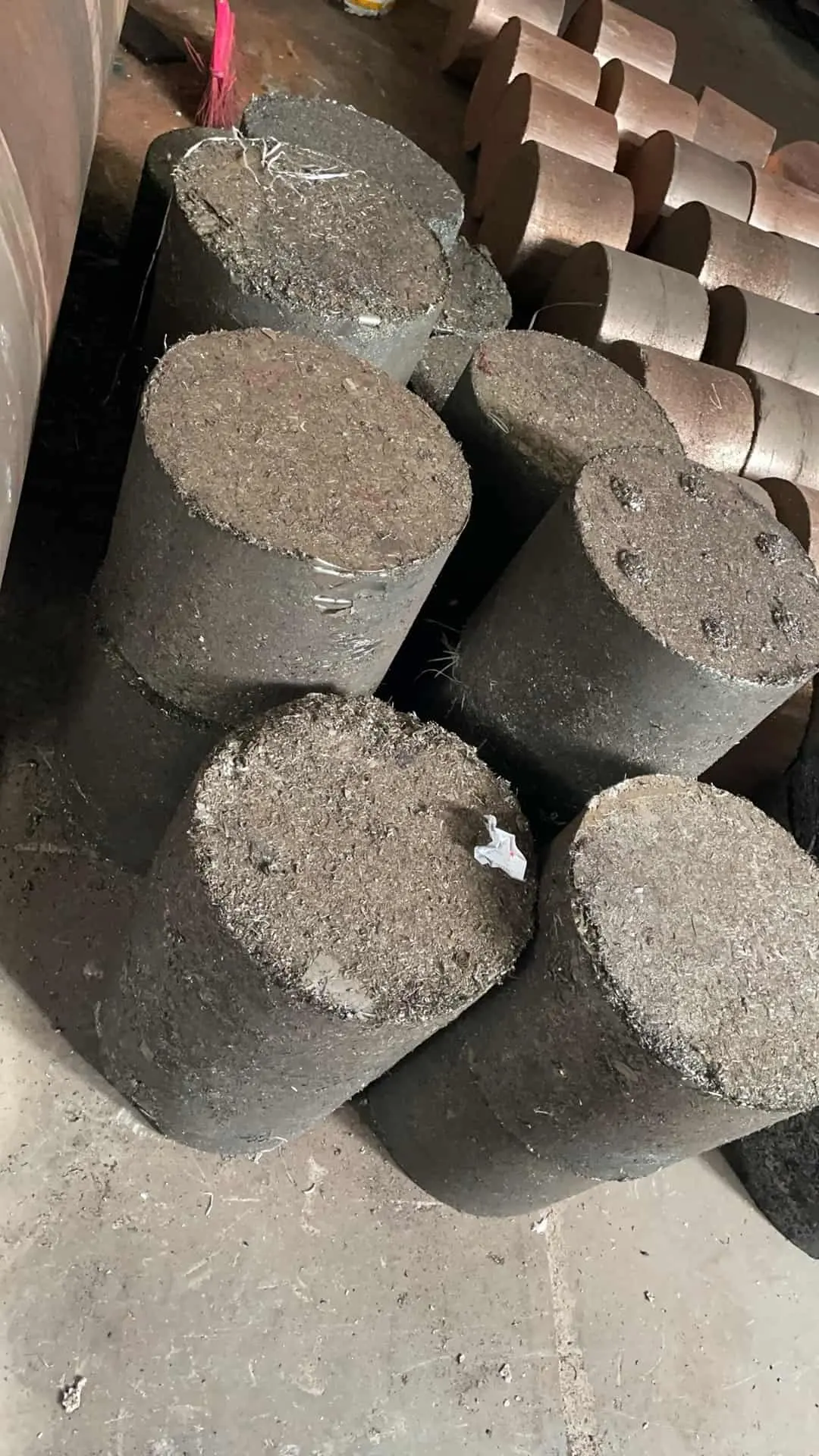

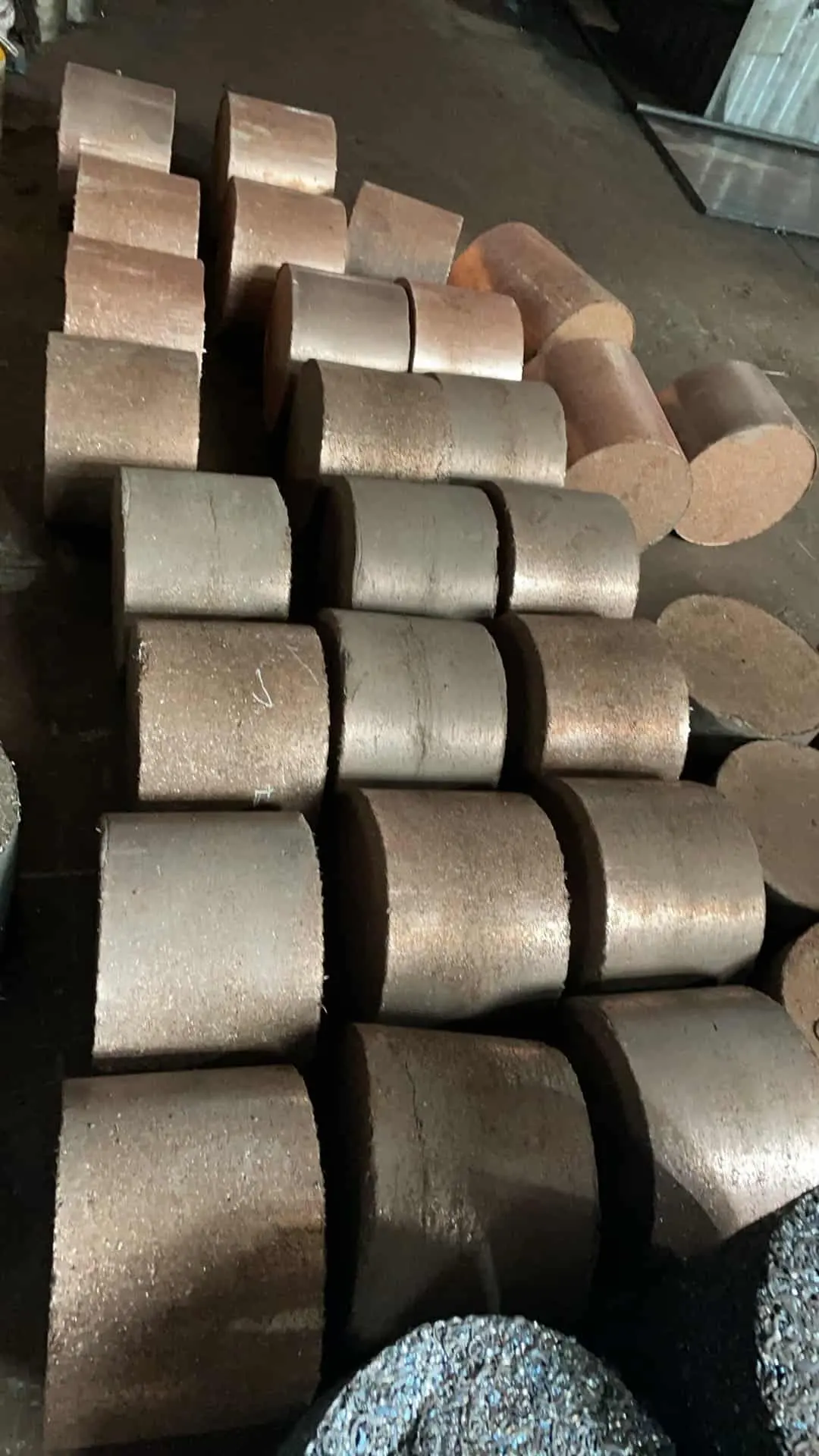

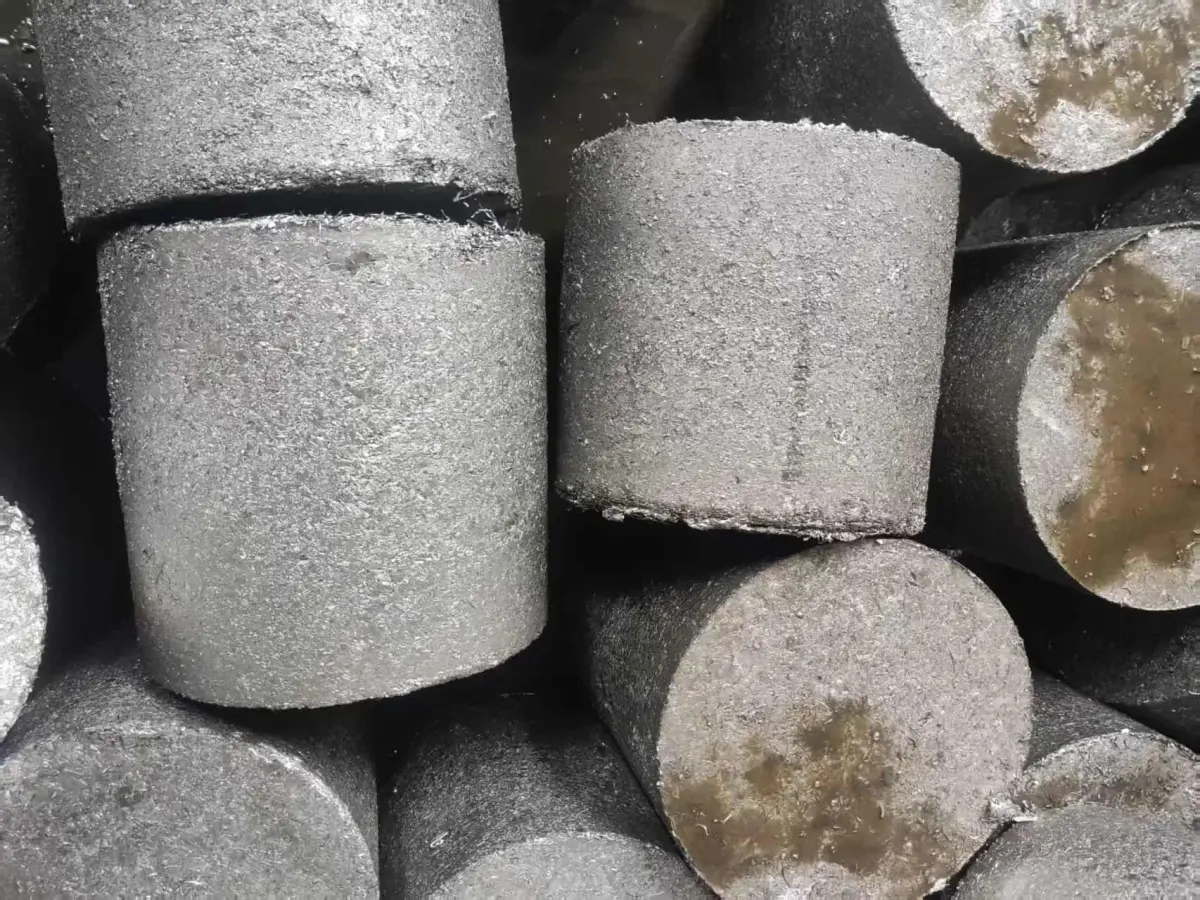

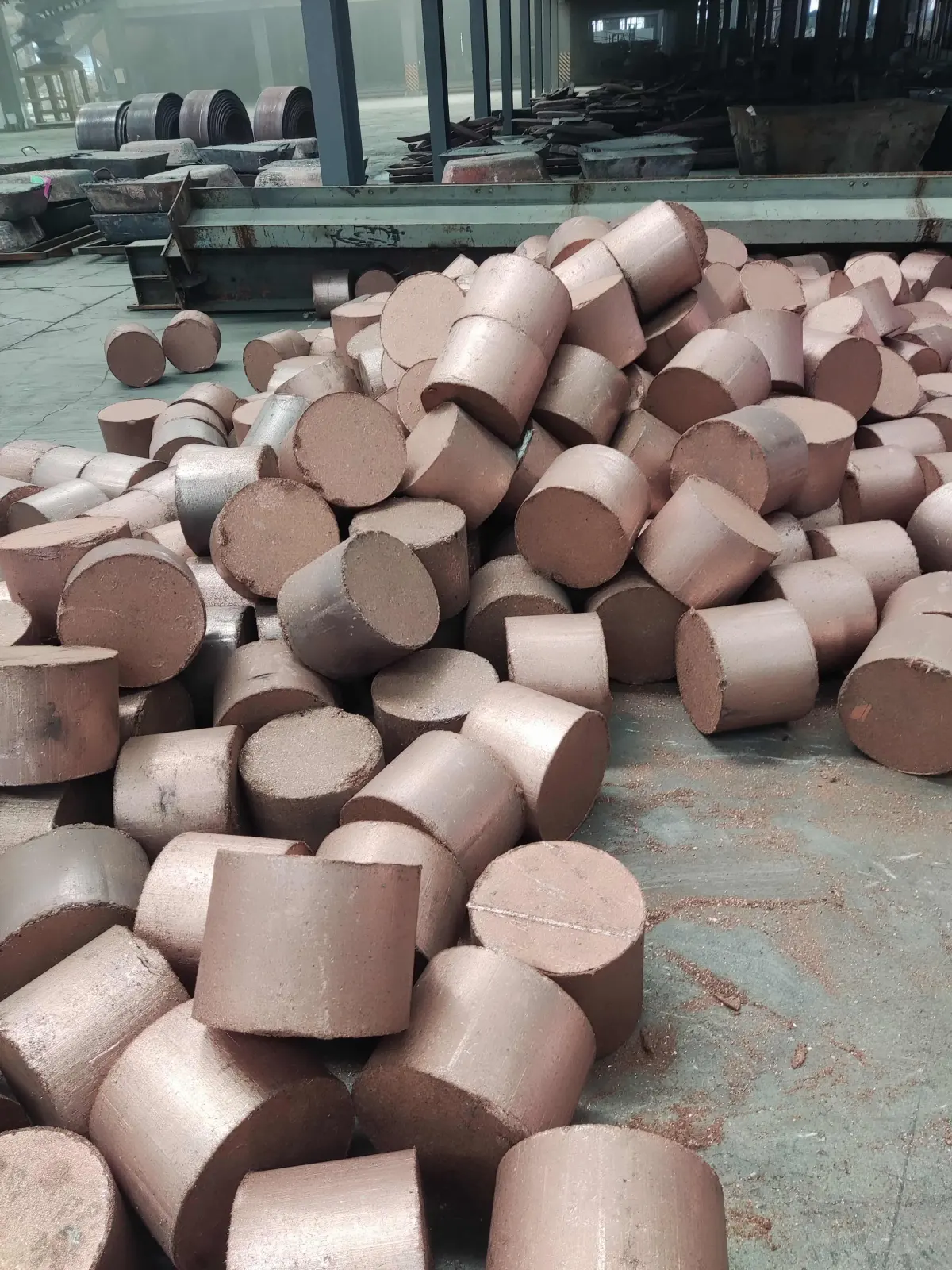

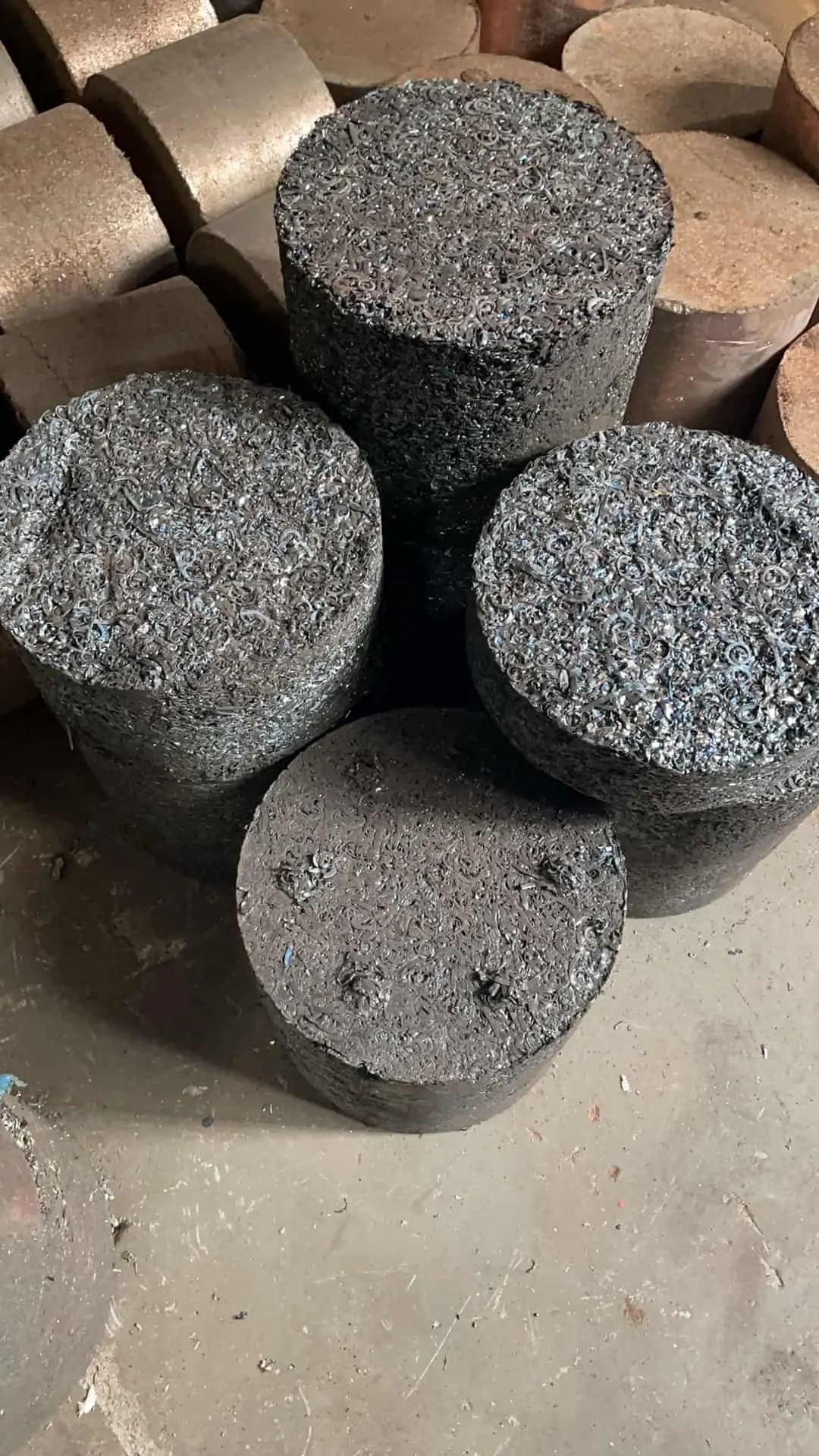

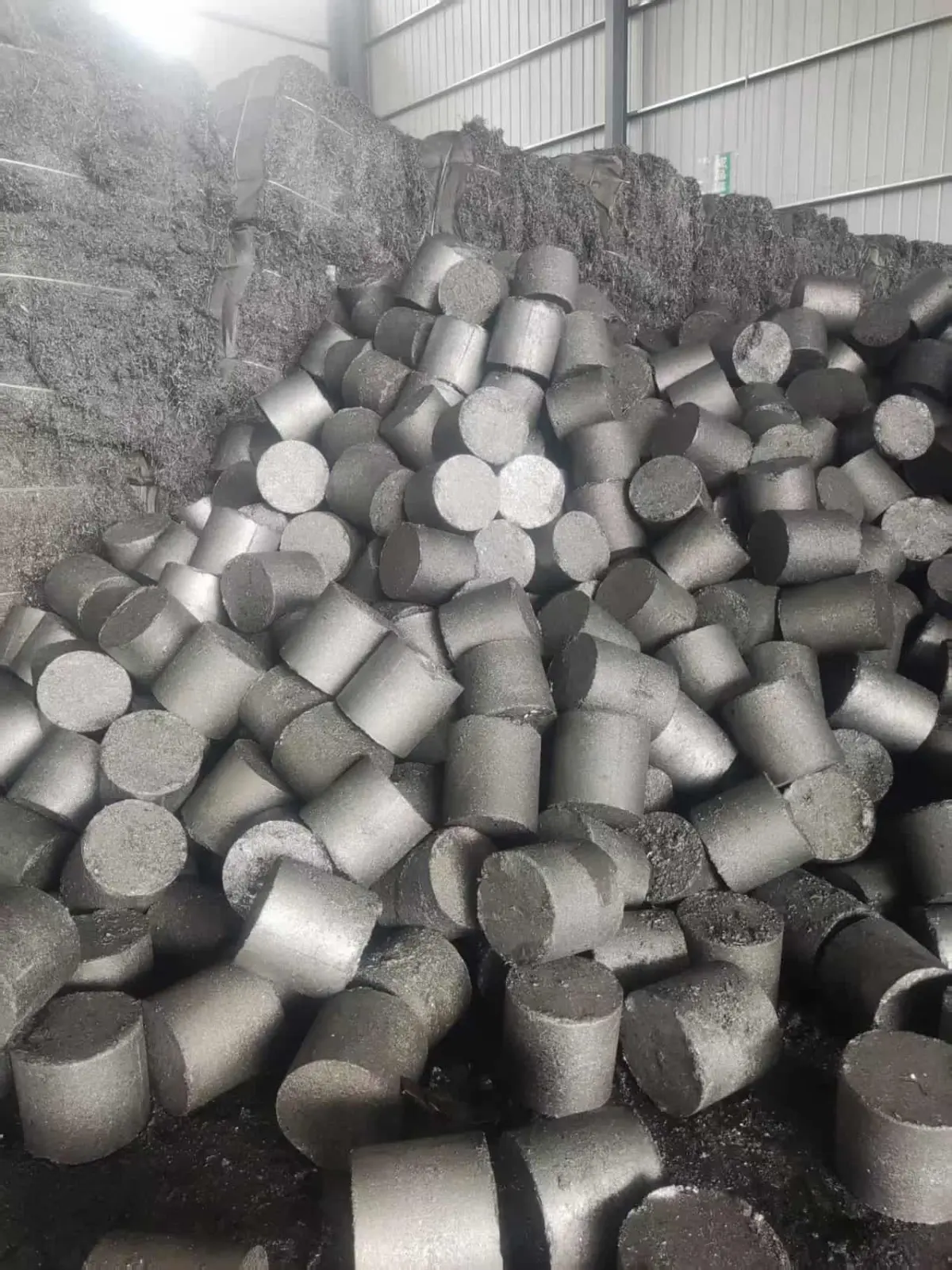

High-Density Briquetting：Pressing force up to 300T compacts loose chips and turnings into dense cylindrical briquettes with a density of 5.5–6.5 t/m3, greatly reducing volume for storage and transport.
Cutting Fluid Recovery：Residual cutting oil and coolant squeezed out during pressing is collected through a dedicated drainage channel, allowing the fluid to be recycled and reused.
Higher Melting Yield：Briquettes reduce oxidation loss and burn-off during remelting, helping foundries and steel mills achieve a higher metal recovery rate with lower energy consumption.
Automatic & Reliable：PLC control with automatic feeding, pressing and ejecting cycles, plus over-pressure protection and a wear-resistant alloy pressing chamber for continuous operation.

Product Details

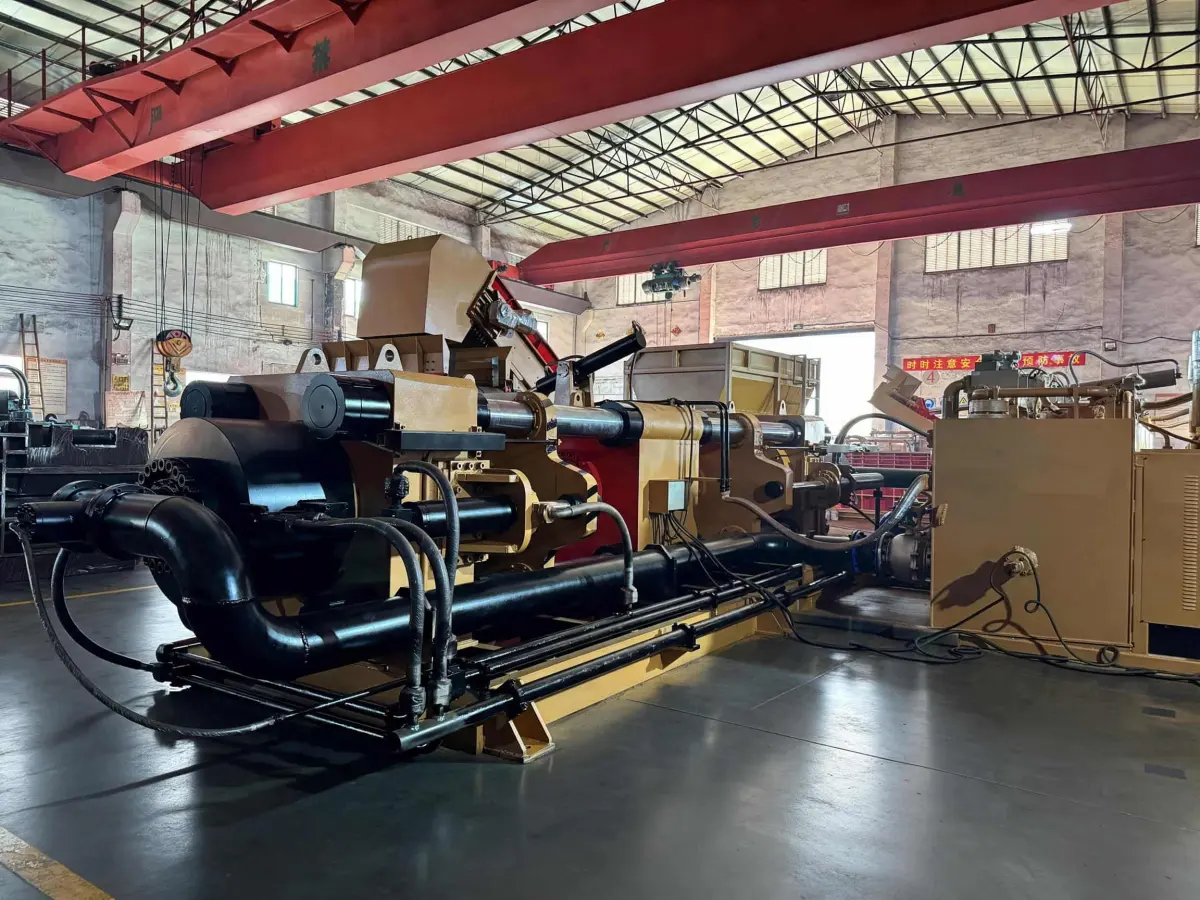

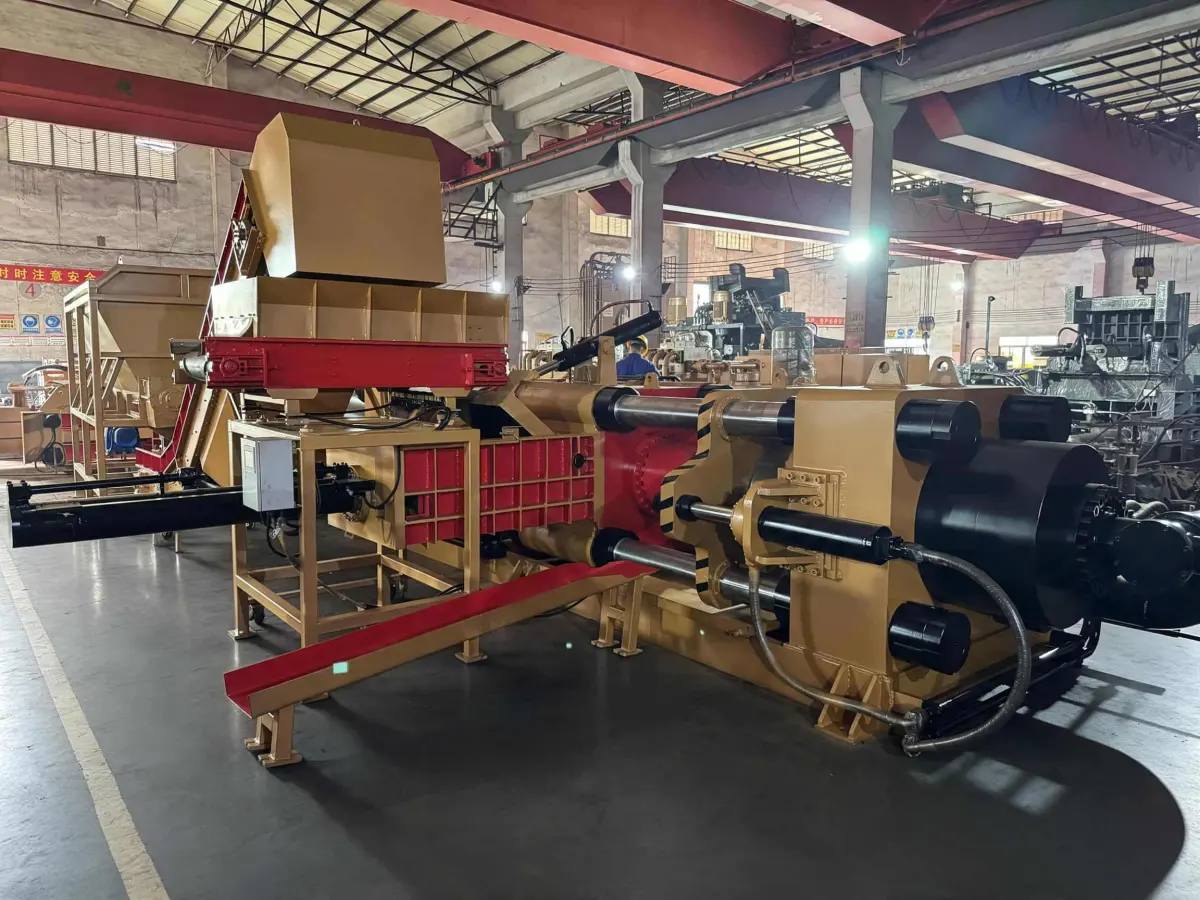

670T–3000T Automatic Horizontal Metal Briquetting Production Line

The 670T–3000T Automatic Horizontal Metal Briquetting Production Line is designed for compressing metal chips and machining scrap, including stainless steel chips, 304 stainless steel turnings, steel chips, iron chips, copper chips, aluminum chips, and other recyclable metal scrap.

The standard product range includes 670T, 1000T, 1300T and 1500T, with customized configurations available up to 2000T, 2500T and 3000T. For customers with higher production requirements or specific processing needs, larger pressing forces and customized production line configurations can also be provided.

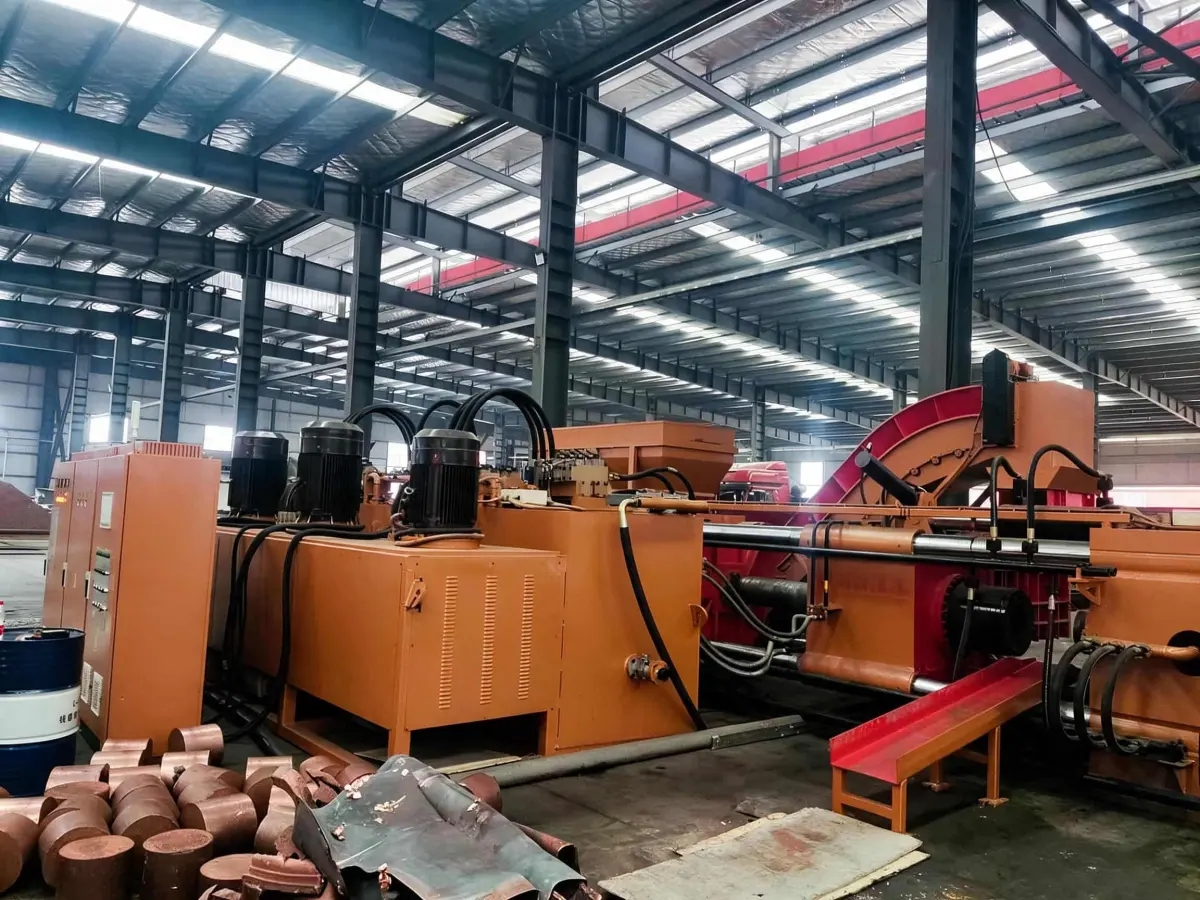

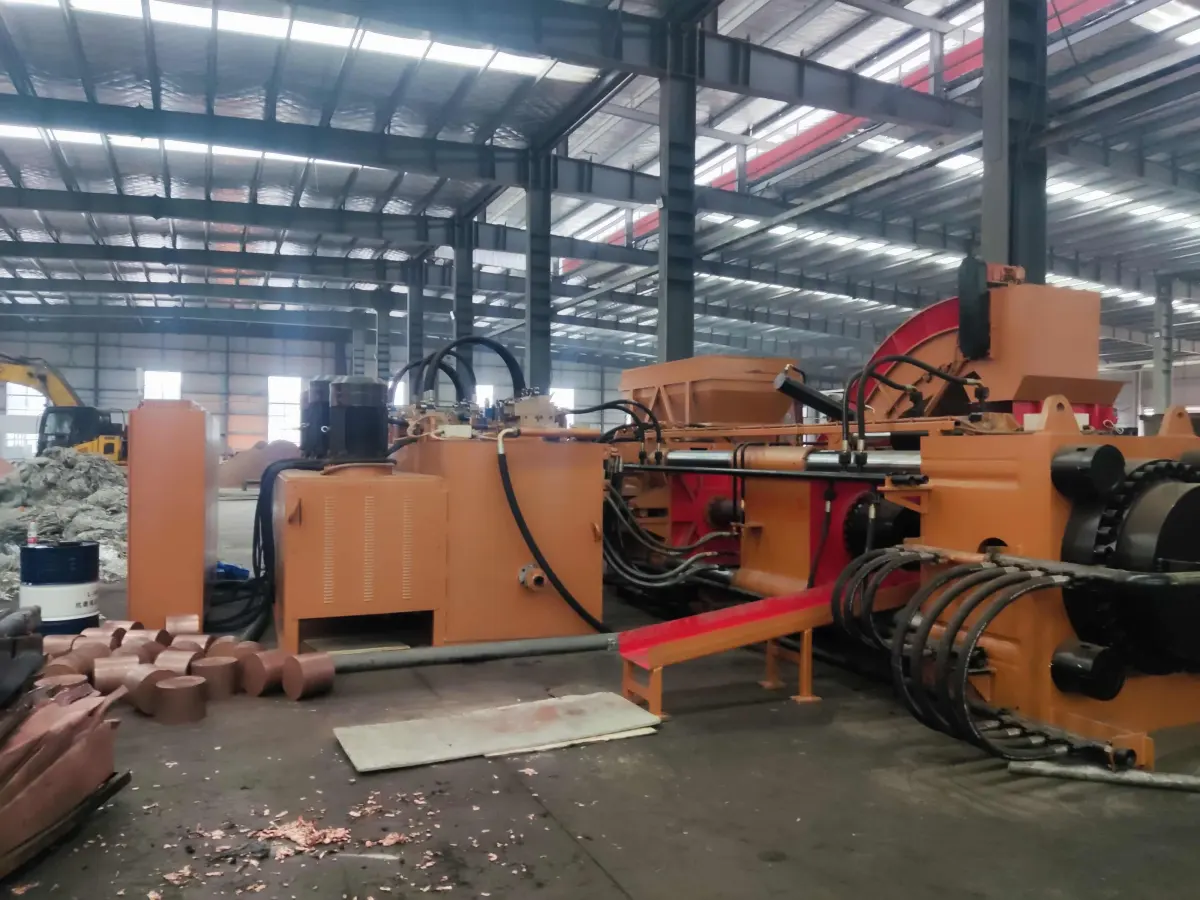

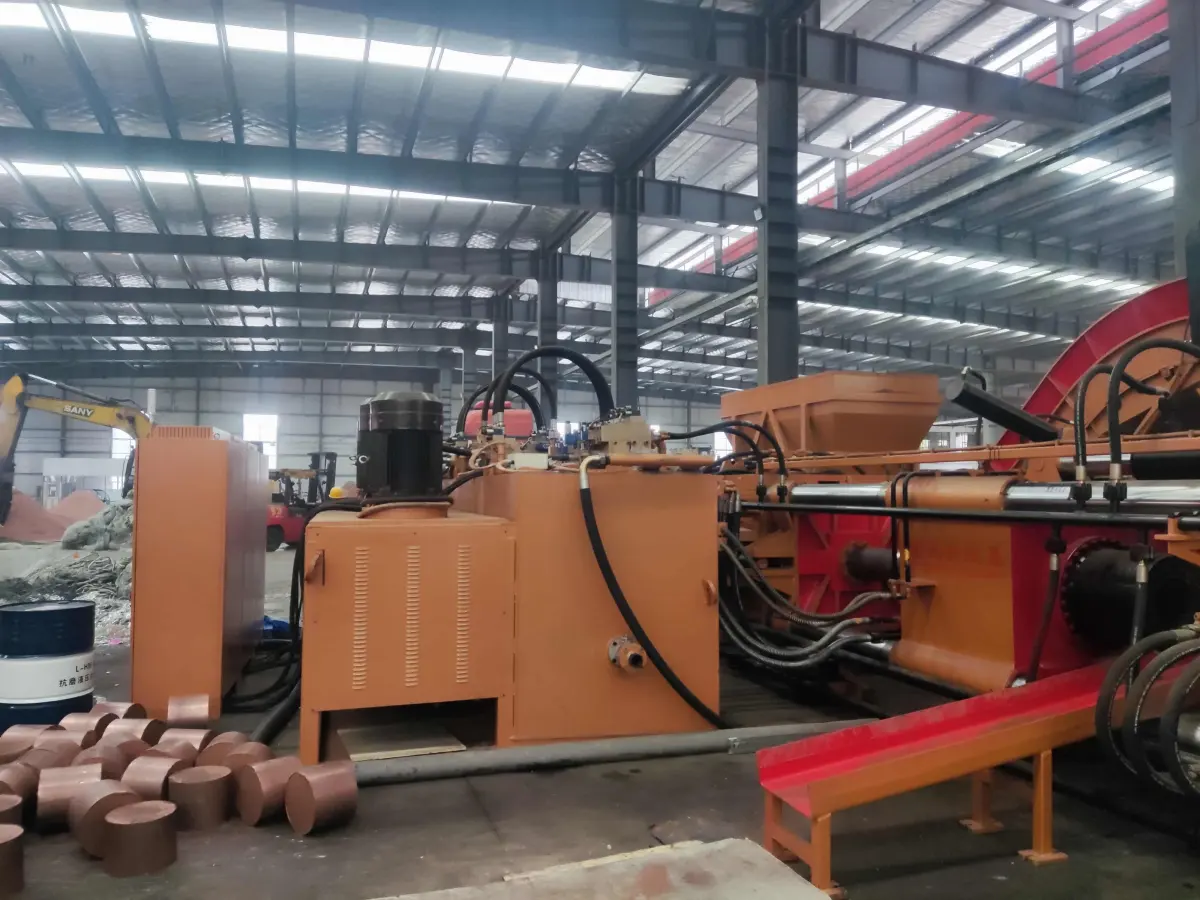

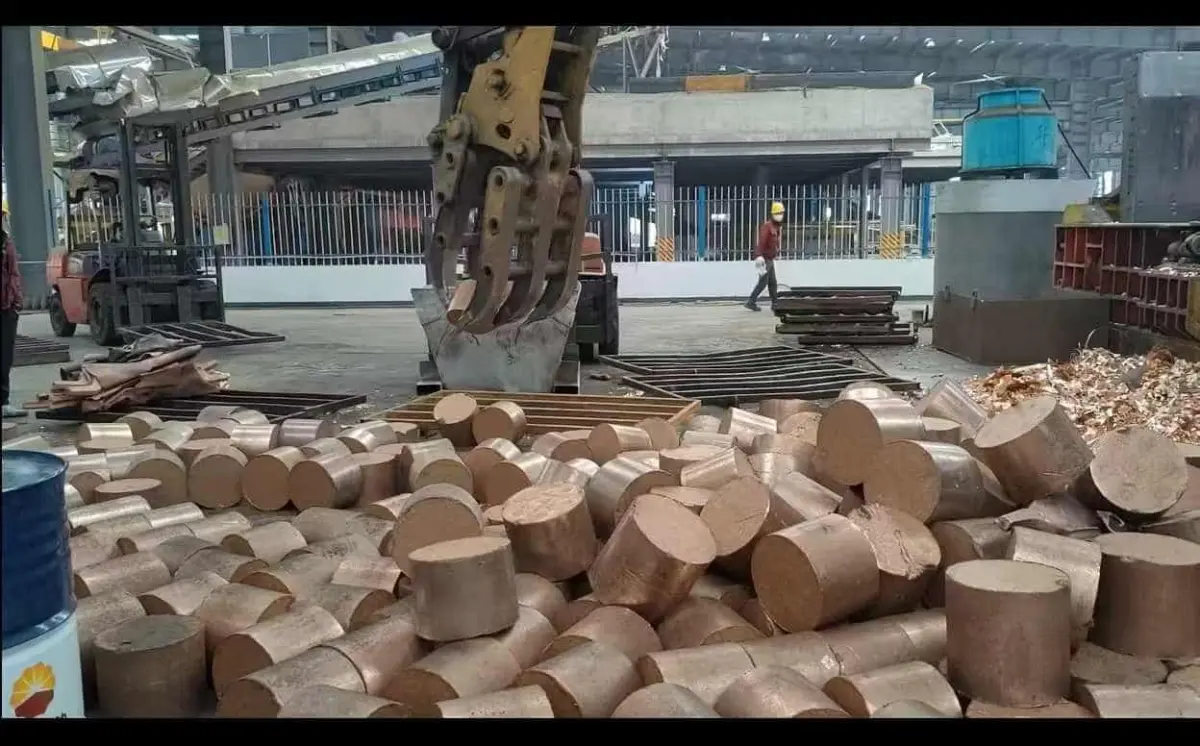

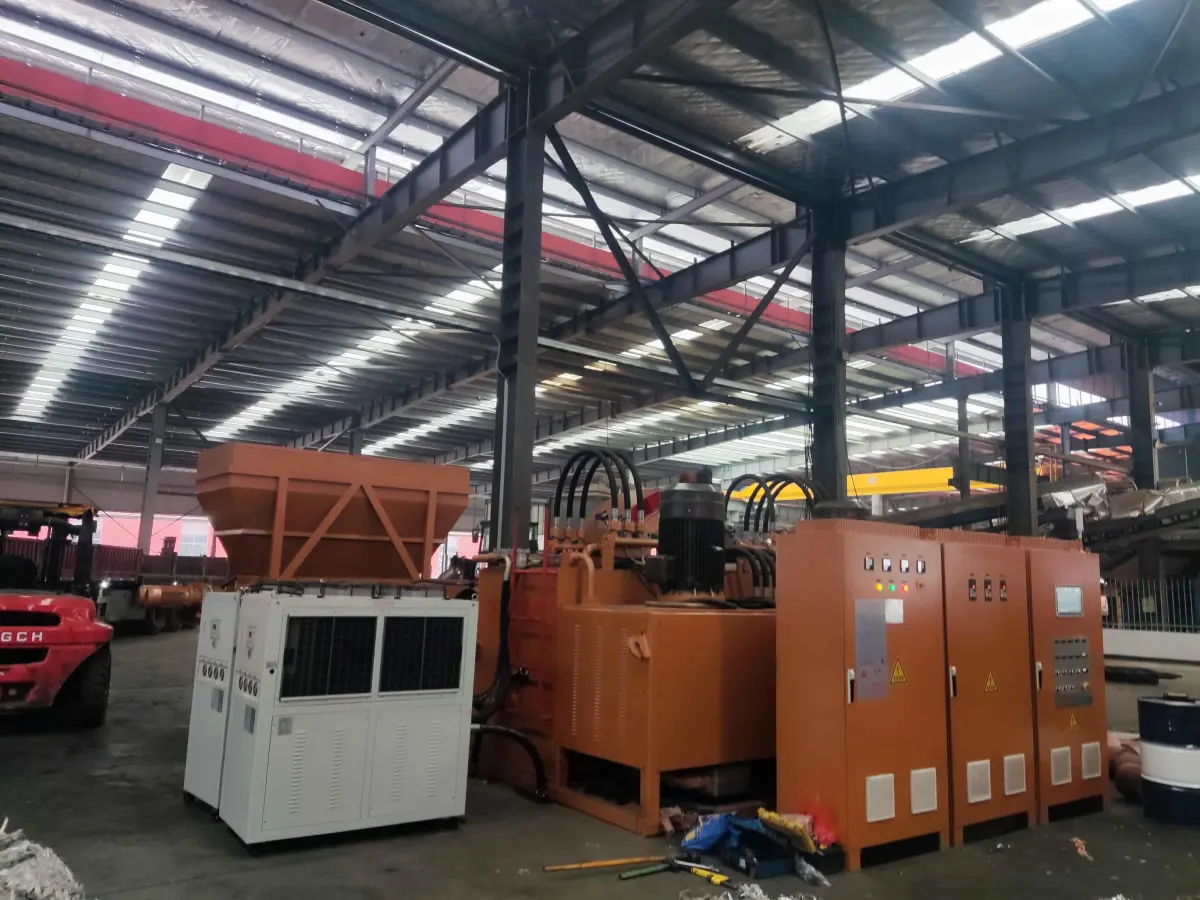

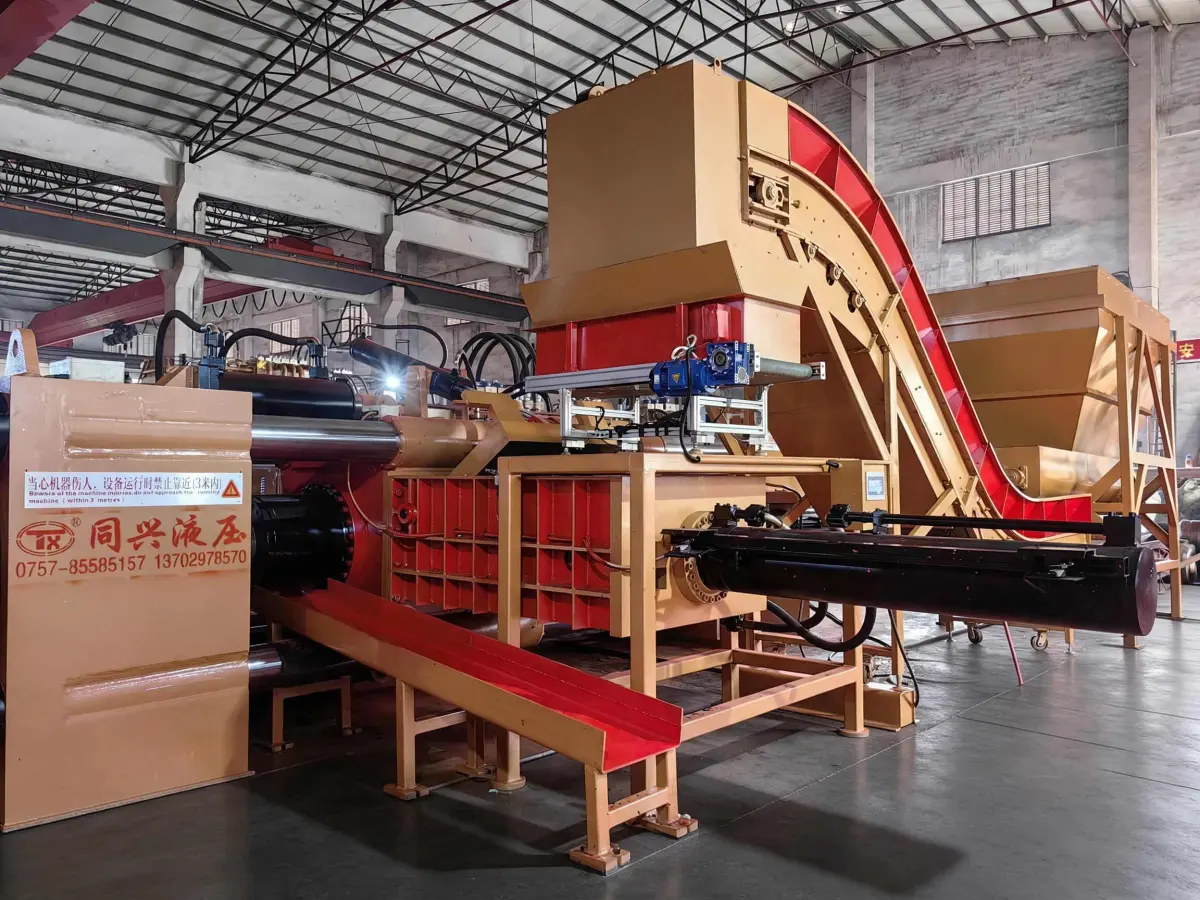

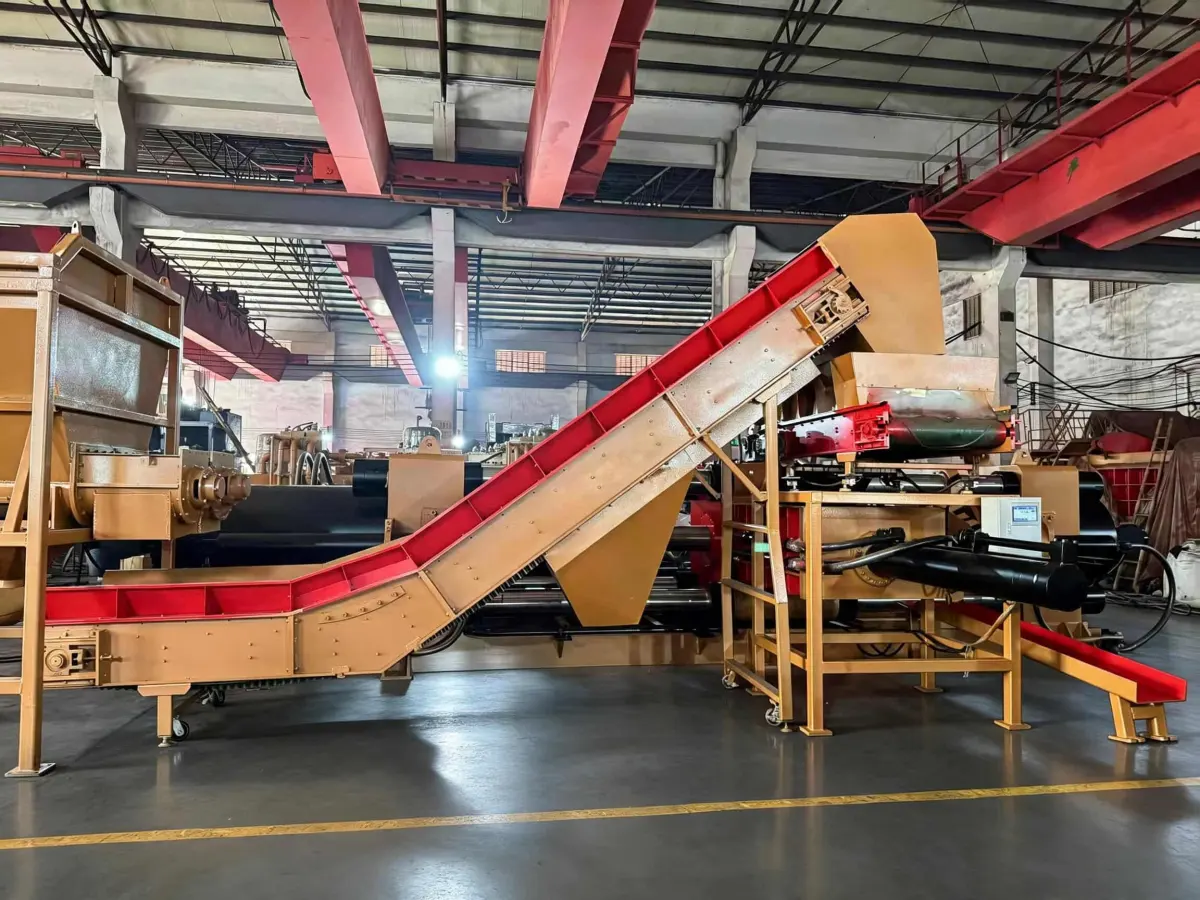

The production line integrates automatic feeding, conveying, electronic weighing, hydraulic compression and briquette discharge. It compresses loose metal chips into compact and dense briquettes, helping reduce material volume, save storage space, improve transportation efficiency and simplify subsequent recycling and smelting processes.

The complete production process can be automatically controlled, including feeding, weighing, material loading, compression and briquette discharge, reducing manual operation and improving production efficiency.

Key Applications

The horizontal metal briquetting production line is suitable for compressing:

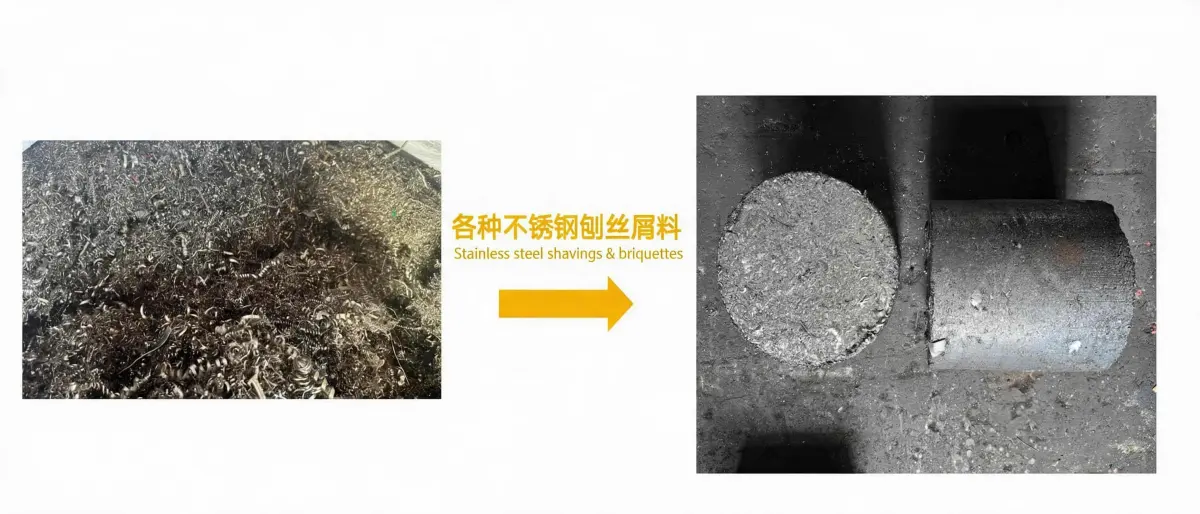

Stainless steel chips and turnings
304 stainless steel chips

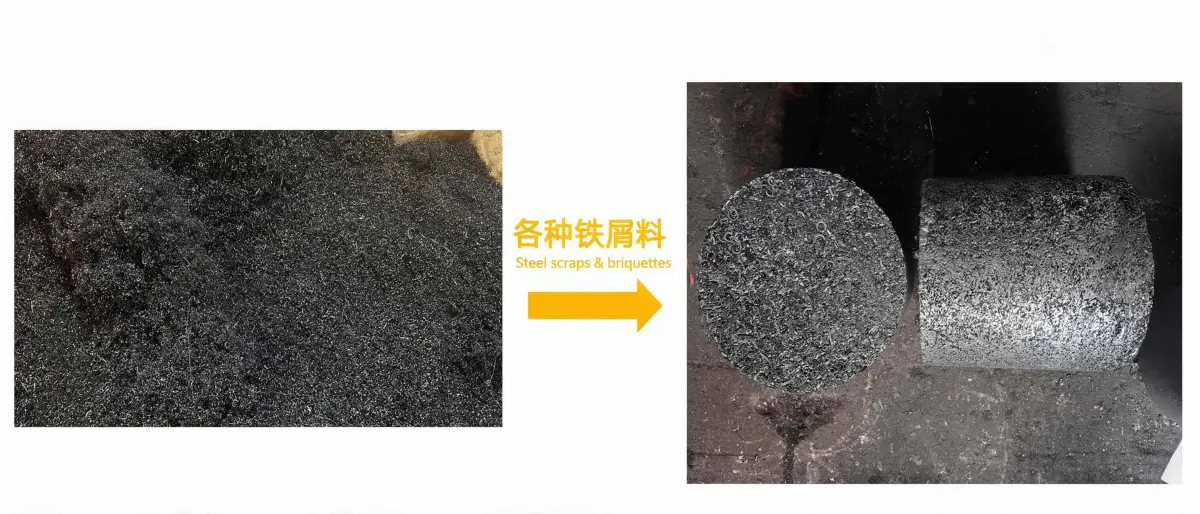

Steel chips
Iron chips

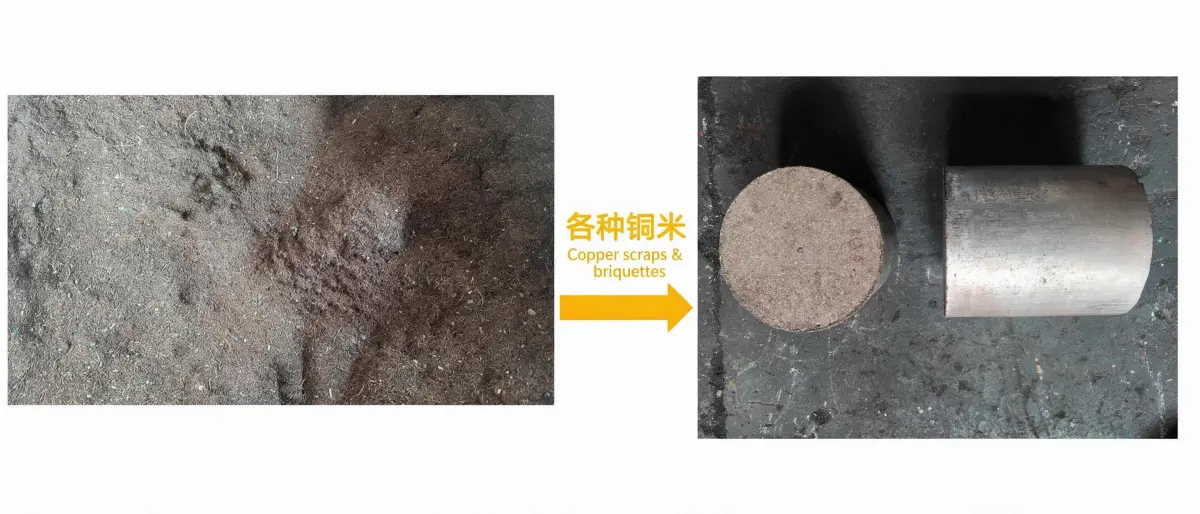

Copper chips

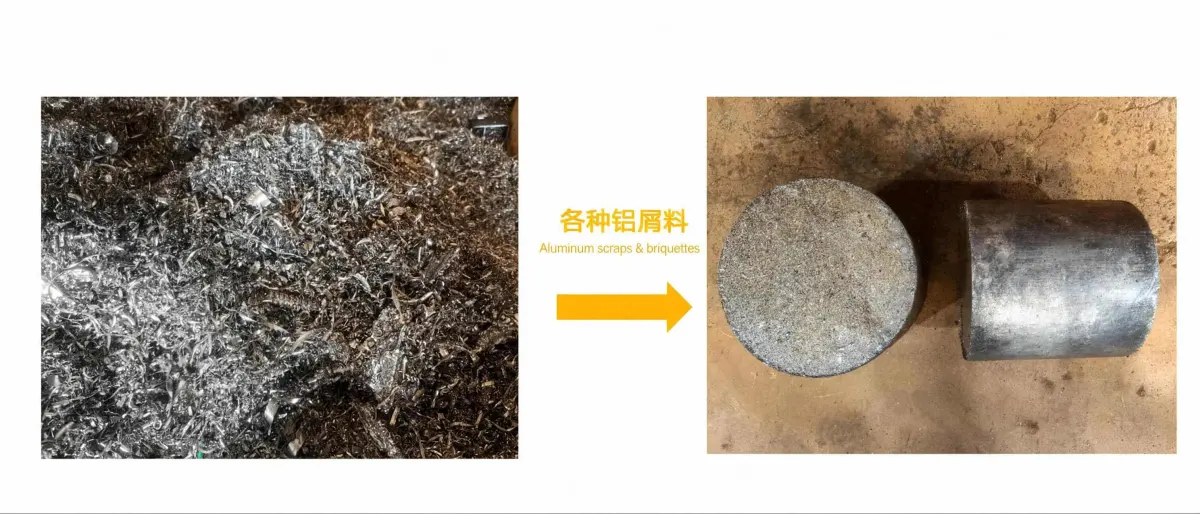

Aluminum chips
Metal machining scrap
Other recyclable metal waste

Standard Models

670T | 1000T | 1300T | 1500T

Customized configurations including 2000T, 2500T and 3000T are available according to specific project requirements.

Model(Ton)	Cake Size(mm)	Power(KW)	Speed/minute/pack
670T	φ260 ~ φ300	*110KW1**	3~5
1000T	φ260 ~ φ300	*110KW2**	3~5
1300T	φ280 ~ φ350	*110KW2**	3~4
1500T	φ280 ~ φ350	*110KW3**	3~4
2000T	φ280 ~ φ350	*110KW4**	3~4
2500T	φ280 ~ φ350	*110KW5**	3~4
3000T	φ280 ~ φ350	*110KW6**	3~4

Main Features

670T–3000T Pressing Force: Available in multiple pressing force configurations for different metal materials and processing requirements.

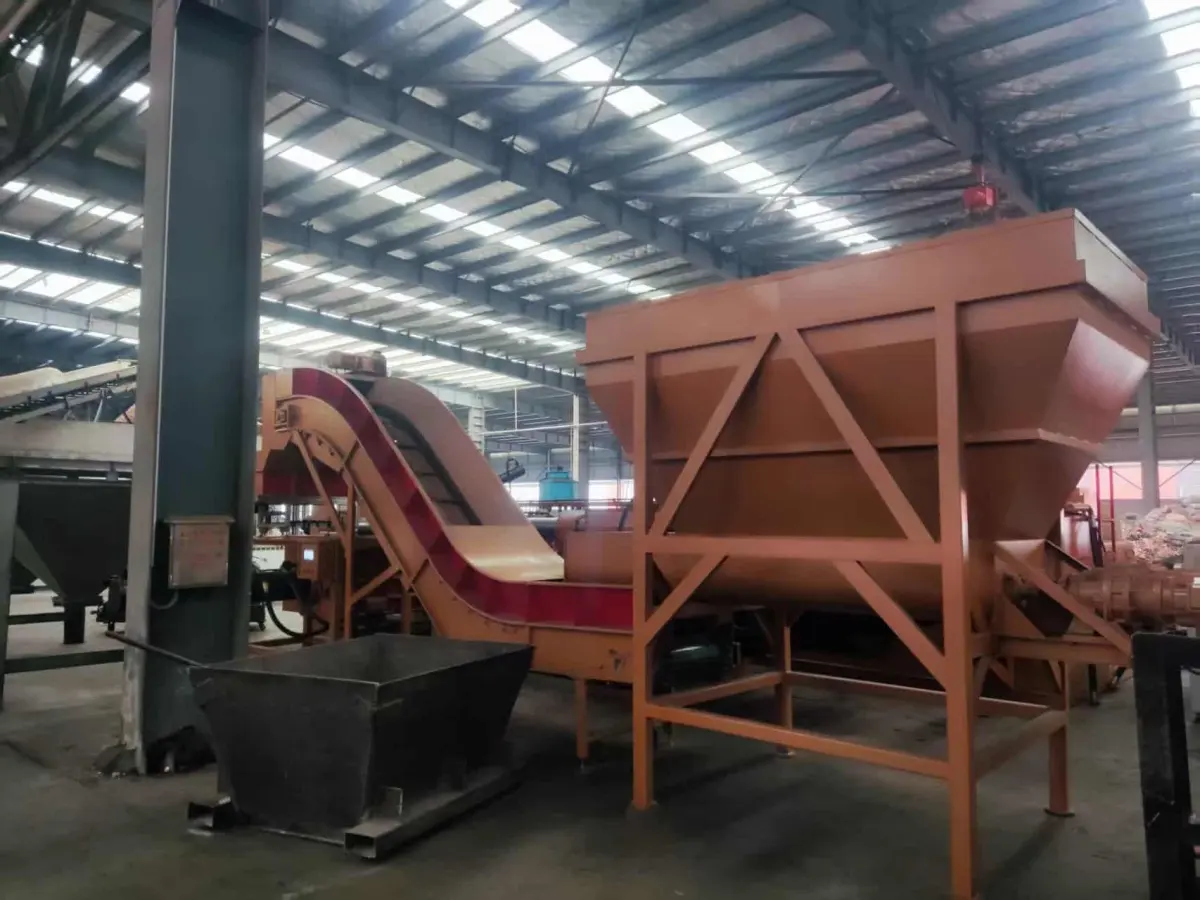

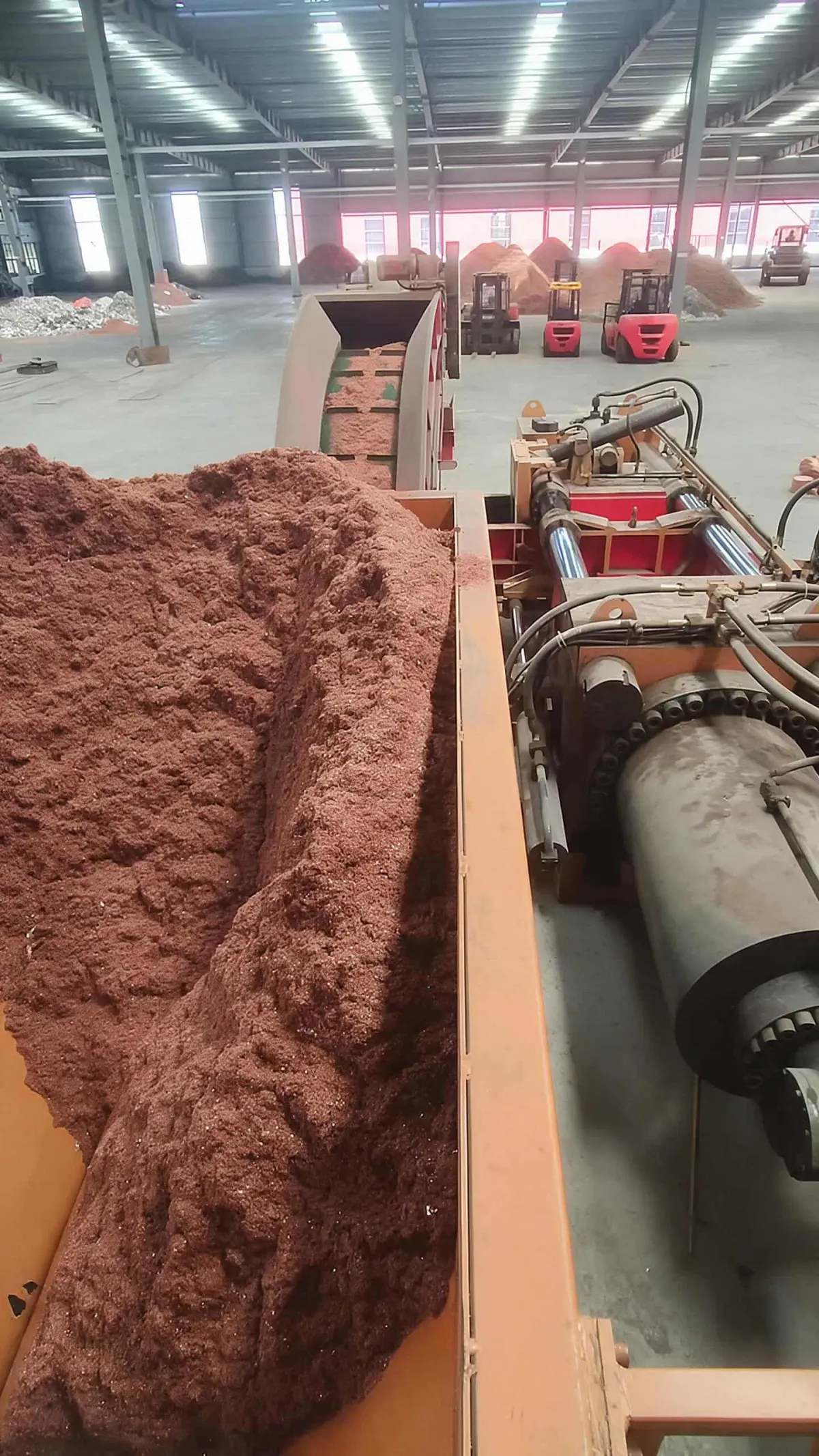

Automatic Weighing & Feeding: The electronic weighing system controls the preset feeding weight and automatically transfers material into the compression chamber.

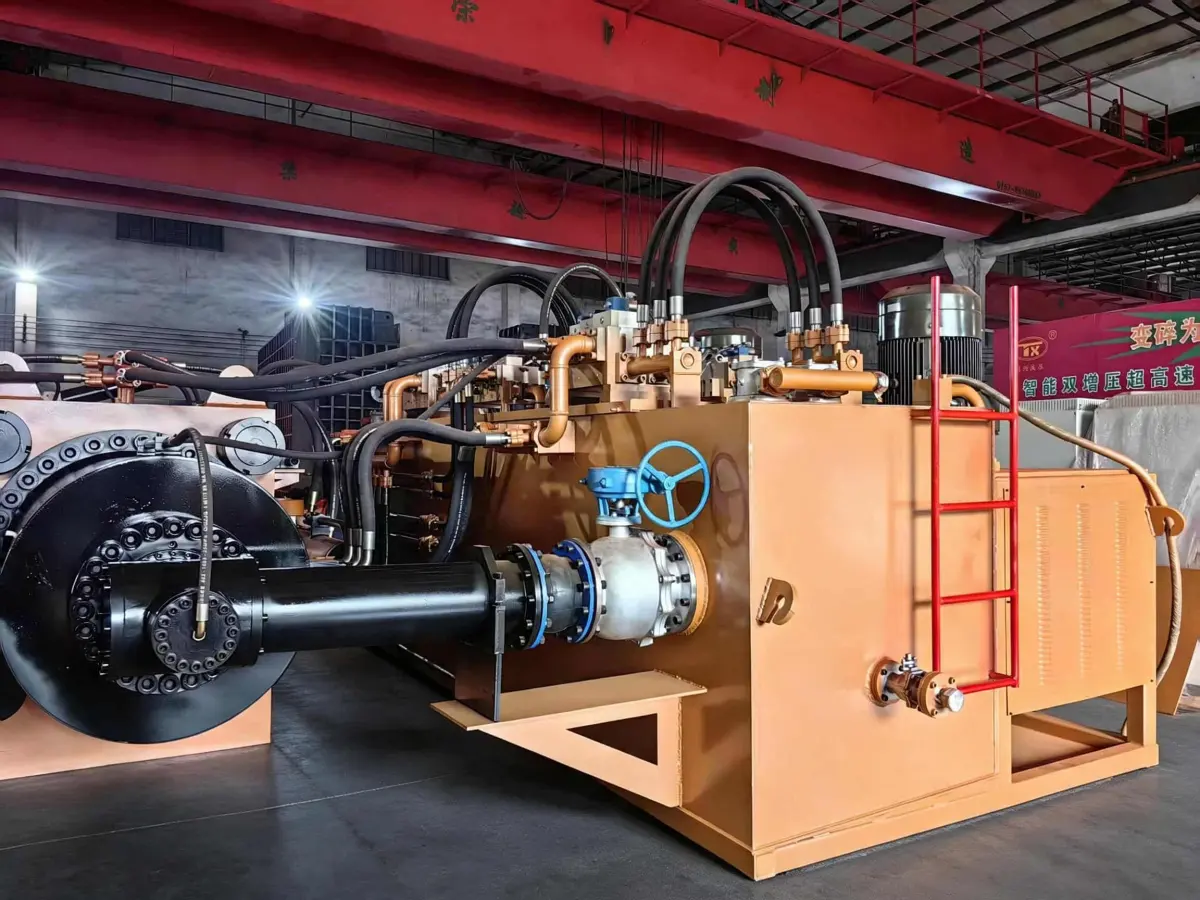

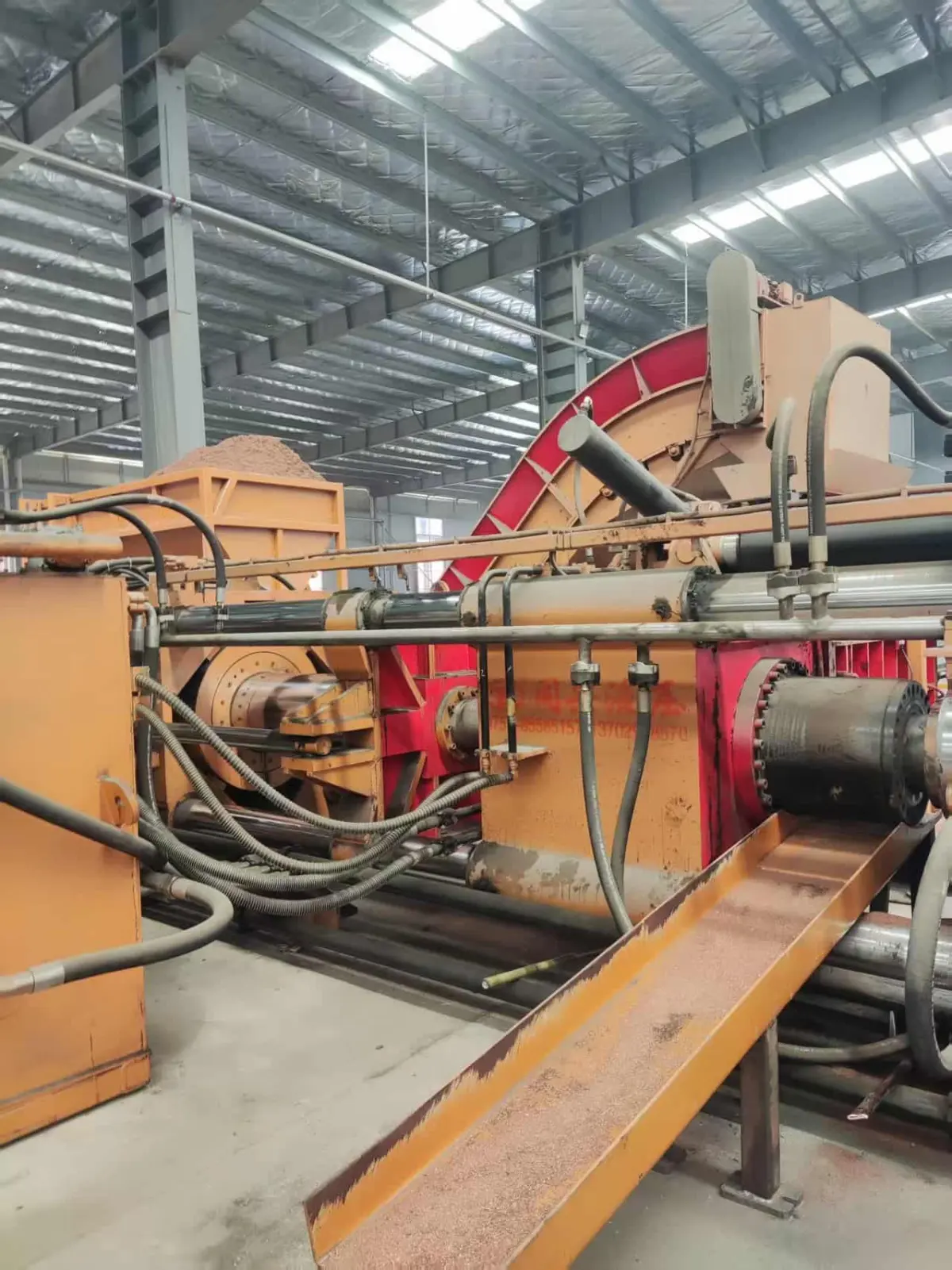

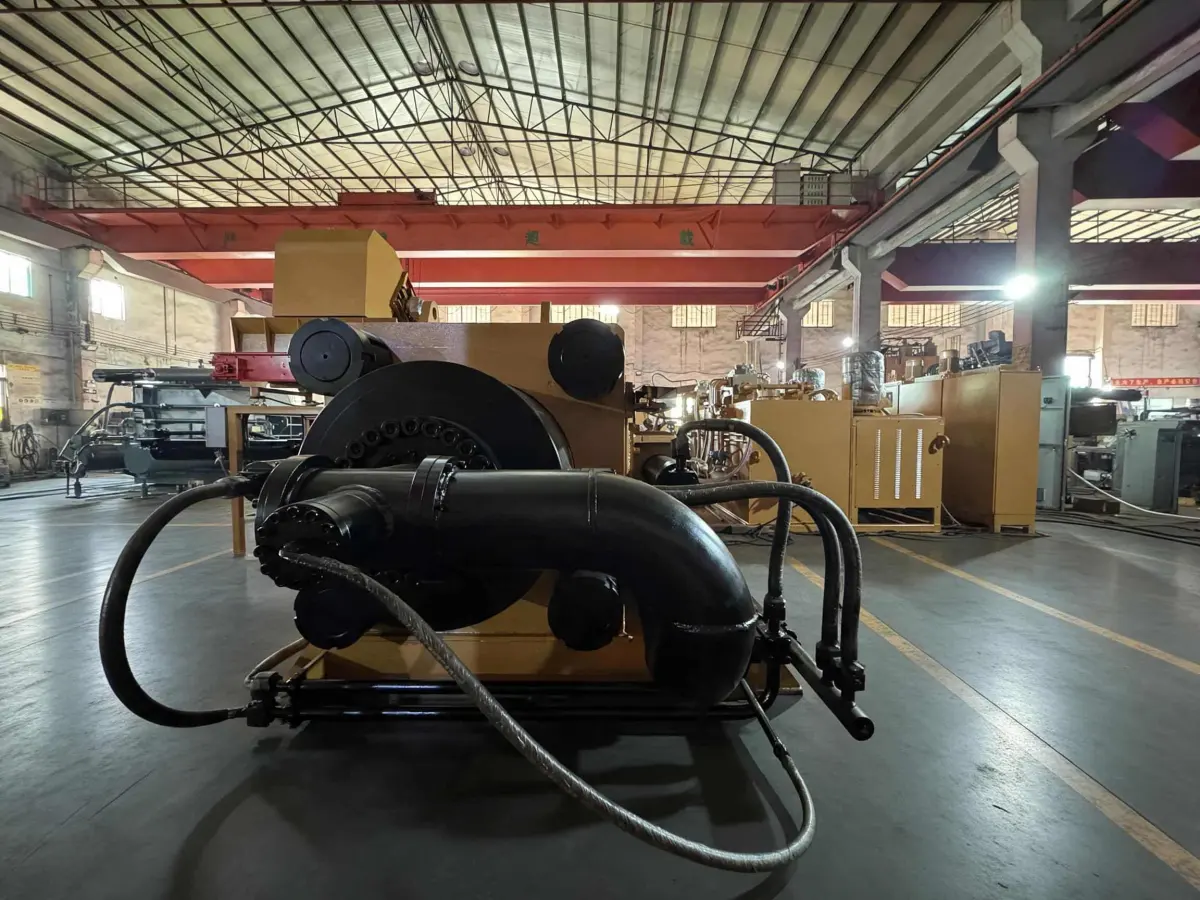

Multi-Cylinder Hydraulic Compression: The pushing cylinder, secondary compression cylinder and main compression cylinder work together to provide strong and stable compression.

High Production Efficiency: The optimized automatic working cycle can achieve up to 3 briquettes per minute, depending on material type, feeding weight and briquette specifications.

Automatic Briquette Discharge: The finished briquette is automatically pushed out by the discharge cylinder, reducing manual handling.

304 Stainless Steel Chip Processing: Specialized compression and mold technology can be configured for 304 stainless steel chips and turnings to achieve stable briquette formation.

Cloud Monitoring: A cloud monitoring system can be provided for real-time monitoring of equipment operation and production data.

Customized Solutions: Briquette size, compression chamber dimensions, pressing force, feeding system, weighing system, motor power, control system, cooling system and other configurations can be customized according to project requirements.

Customization

Tongxing Hydraulic provides customized horizontal metal briquetting solutions according to the customer's material type, material density, required briquette size, briquette weight, processing capacity, available installation space and operating requirements.

We can customize pressing force, compression chamber size, briquette size, feeding system, electronic weighing system, motor power, hydraulic system, cooling system, control system, discharge system and cloud monitoring system according to specific project requirements.

For high-volume recycling applications, larger models beyond the standard range can also be developed.

Training & Technical Support

Tongxing Hydraulic provides complete operation and training materials with the production line to help customers operate the equipment safely and efficiently.

The training materials cover production line operation, daily maintenance, safety procedures and basic troubleshooting, allowing operators to learn the equipment operation and routine maintenance.

Technical support is also available during installation, commissioning and operation.

Packaging & Shipping

With extensive experience in international equipment export, Tongxing Hydraulic provides professional equipment packaging and shipping services.

The production line is securely packaged according to its structure and transportation requirements to help protect the equipment during loading, handling and long-distance international transportation.

We can also assist with equipment loading, shipping arrangements and export-related logistics, providing customers with a professional and convenient delivery service.
